Report item
Item specifics
  • IR Distance(m): 10M
  • Technology: Infrared
  • Sensor: CMOS
  • Minimum Illumination(Lux): 0.01LUX(OLUX IR ON)
  • Supported Mobile Systems: iPhone OS,Android
  • Power Consumption(W): 8W MAX
  • Supported Operating Systems: Windows 7,Windows Vista,Windows 98,Mac os,Windows 8,Windows XP
  • is_customized: Yes
  • Video Compression Format: H.264
  • Model Number: IPCX-BC28384MP-P
  • Dimensions (L x W x D)(mm): 100*80mm(diameter*high)
  • Special Features: Waterproof / Weatherproof
  • High Definition: 4.0 Megapixels
  • Style: Dome Camera
  • Power Supply(V): 12V
  • Wall Bracket: Ceiling
  • Type: IP Camera
  • Sensor Brand: SONY
  • Installation: Ceiling
  • Connectivity: IP/Network Wired
  • Brand Name: Unitoptek
  • Lens (mm): 3.6mm
  • Network Interface: RJ-45 10/100Mb Ethernet Slot
  • Audio Output: N/A
  • Framerate: HI3516D + 1/3'' OV4689 Sensor
  • Main stream: 4MP(2592*1520@15fps) OR 3MP(2048*1536@25fps)
  • Housing Material: Metal
  • POE Port: Yes
  • IR: 12pcs leds, IR 10M
  • Size: 100*80mm(diameter*high)
  • P2P Cloud: www.xmeye.net
  • Support Mobile APP: XMEye
  • Power supply: DC12V 1A (Don't included)
  • Viewing Angle (Degree): 75 Degree
Product Description

1/3" OV4689 IP Camera 4MP POE Dome Network Outdoor Waterproof IP66 Full HD 4MP OR 3MP P2P Cloud XMEye iPhone Android View

item pictures

IPCX-BC28384MP-P_01IPCX-BC28384MP-P_02IPCX-BC28384MP-P_03IPCX-BC28384MP-P_04IPCX-BC28384MP-P_05IPCX-BC28384MP-P_06IPCX-BC28384MP-P_07IPCX-BC28384MP-P_08

IPCX-BC28384MP-P_09



2 1





item description



Read the following FAQ if you have any questions on our ip camera:
1.Q: Is this ip camera work with the brand nvr ect. ?
A:Yes,Our IP cameras support onvif 2.0,can work with any onvif nvrs,Brand etc. and any made-in-china  nvrs support onvif 2.0 or higher.

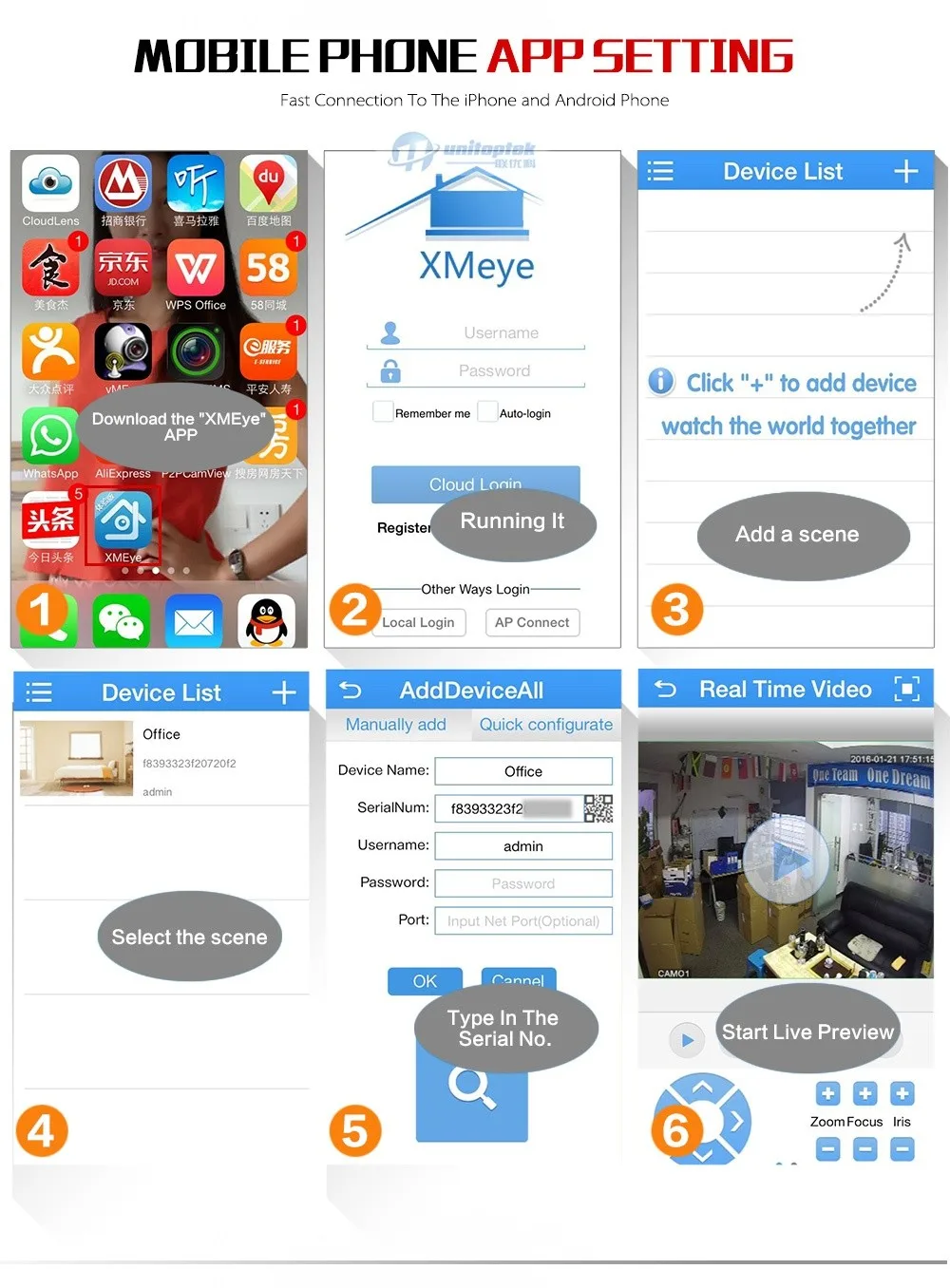

2.Q:what is the app for iphone and android? what is the p2p website?
A: Search the app by "XMEye" for both android and iphone,the p2p website is "www.xmeye.net"
3.Q:Do you accept OEM orders?Labing?
A:We can provide labling or lasering logo services,and get bigger discount on bulk order,Please dont hesitate to contact our salesman online.



Features:

· 4MP(2592*1520) ,3MP(2048*1536) HD Resolution ,clear and find images

· Newest HI3516D + 1/3\'\' OV4689 Sensor

· Support 2D/3D noise reduction,digital wide dynamic

· Advanced H.265/H.264 Video compression

· Super low rate,high definition quality of image

· Vandal-proof Waterproof IP66

· P2P,support cloud technology ,mobile phone viewing

· Day & Night vision

· Metal Material

· 12PCS IR LED 10 Meters IR Distance

· Fixed FULL HD 3.6mm default

· With POE Port





Specifications:

Model

 IPCX-BC28384MP-P

System Structure

Embedded RTOS, dual-core 32bit DSP ,pure hard compression, watch dog

image sensor

1/3" OV4689 low illumination CMOS; Color 0.01Lux F1.2,black/white 0.001Lux F1.2

Video compression

H.265/H.264,support dual stream,AVI;0.1M~10Mpbs

variable;1~30f/s variable

Image output

Main stream:4MP 2592*1520 15fps;3MP 2048*1536 25/30fps

sub-stream: 1280*720,704*576 25/30fps

Noise reduction

Support 2D/3D

Wide dynamic

Support digital

Features

Support WEB, OSD, live video transmission, motion detect front-end storage/playback/download, BMP capture; united remote client monitoring software,and so on

ONVIF

Support ONVIF

mobile monitoring

support multiple mobile monitoring(iPhone,  Android)

Other functions

DC12V,3W(consumption)

Case

Metal,Waterproof IP64

P2P Cloud

www.xmeye.net

Mobile APP

XMEye

Lens

Default 3.6mm

Camera size

100*80mm(diameter*high)

Camera Weight

0.35kg

Support NVR

YES

PoE

YES





Packing List

1 x 4mp IP Camera with poe

1 x CD(Include software and user manual)

1 x Screws



NOTICE:

Our Camera Does NOT Included The Power Adapter,
If You Need It, Please Kindly Click The Photo As Below, Add It In Your Order List, Thanks !






fuwu_01fuwu_02fuwu_03fuwu_04fuwu_05fuwu_06fuwu_07

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.5kg (1.10lb.)
  • Package Size: 15cm x 10cm x 10cm (5.91in x 3.94in x 3.94in)
