Item specifics
  • Brand Name: JIENU
  • Technology: Infrared
  • Video Compression Format: MPEG4,H.264
  • Sensor: CMOS
  • Supported Mobile Systems: iPhone OS,Android
  • Power Supply(V): DC 12V 2A
  • Supported Operating Systems: Windows 7,Windows Vista,Windows 8,Windows XP
  • Model Number: JN-IP601AR-D-WIFI
  • Wall Bracket: Side
  • is_customized: Yes
  • Alarm Action: Email Photo
  • High Definition: 1080P(Full-HD)
  • Viewing Angle (Degree): 85°
  • Special Features: Waterproof / Weatherproof
  • Connectivity: IP/Network Wireless
  • Color: White
  • Dimensions (L x W x D)(mm): 164mm*60mm
  • Minimum Illumination(Lux): 0.1
  • Power Consumption(W): 5W
  • Installation: Embedded
  • Type: IP Camera
  • Sensor Brand: SONY
  • Style: Bullet Camera
  • Lens (mm): 3.6mm
  • IR Distance(m): 15
  • Network Interface: RJ-45 10/100Mb Ethernet Slot
  • Audio Output: NONE
  • WIFI Wireless:: 802.11b/g/n
  • Supported Operating Systems: Windows XP win 2000 win vista win 7 win 8
  • Free Domain: Support
  • Type: 2.0 MP Ip Camera
  • Shape: Bullet Camera
  • P2P: Support
  • Onvif Protocol: Support
  • chips: Hisilicon 3516C
  • Viewing Angle (Degree): 79
Product Description

2.0MP Ip Camera Wireless HD 1080P Outdoor waterproof Infrared Mini Cameras Wifi Network cam IR Cut Bullet Camera Onvif P2P

Onvif HD Wifi IP Camera Wireless P2P Plug Play IR Cut Night Vision Waterproof Outdoor Indoor 1080*1920P  2.0MP

Feature:

Wi-Fi/802.11/b/g/n , Free Factory DDNS
Support Protocol: TCP, UDP, IP, HTTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPSec UpnP, RTP, and RTCP
Dual stream encoding / H.264 compression mode
1/3-inch 2.0 Megapixel OV9712 CMOS
Night Vision:5-18m
2.0MP:1080*1920@16 fps
Support Multi-Screen software and CMS
Onvif Compatibility
Wireless, P2P, Support Andorid  iphone
APP: Camviews
Support IR-Cut
Lens size : 3.6mm , 6mm
Package Includes:
1* 1080P Wireless IP Camera
1* CD (including introduction)
1* antenna
3* Screw
Note: Please use 12V 2A power supply
"Only Camera" packaging does not include the power supply.
7 8 9 10 11 12 13 14 15 16 17 18




Model : IP601AR-D-WIFI

Features

System security

3-level user authority management, built in watchdog,

can auto test chipset and software.

Built-in dynamic IP domain system (Free)

Built-in domain name, support dynamic IP. support P2P

View Mobile platform

install APP, multi-channel mobile view, support mobile view .

Plug   Play

Plug   Play  technology applied.  penetration rate.

CMS

1, 4, 9, 16,  20, 36 channel central management surveillance system, no user limitation. Centralized monitoring, remote recording, remote playback.

Core

O.S

Built in Linux

Control protocol

ONVIF protocol, high interoperability

Processor

JX - F02 processor, built in 9712  Max. 440MHz and High-speed vide co-processor

Video

Compression format

H.264 Baseline Profile  H.264 Main Profile   MJPEG/ JPEG Baseline

resolution/frame rate

1920* 1080P/ 960P/ 720p/ VGA/  QVGA   16fps

Image adjustment

Brightness, Contrast, Saturation are adjustable

Sensor

1/ 3 1920 Progressive CMOS sensor

Minimum illumination

0.1 Lux / F1.2

CMOS

support AWB, AGC, BLC

Sensor size

3.84mm* 2.16mm

Video coding

Multi stream:1920P 16fps VGA 16fps QVGA  16fps 1080P   1fs JPEG capture

Bit Rate

CBR/VBR,output range: 32kbps-40Mbps

 Lens

3.6mm,6mm

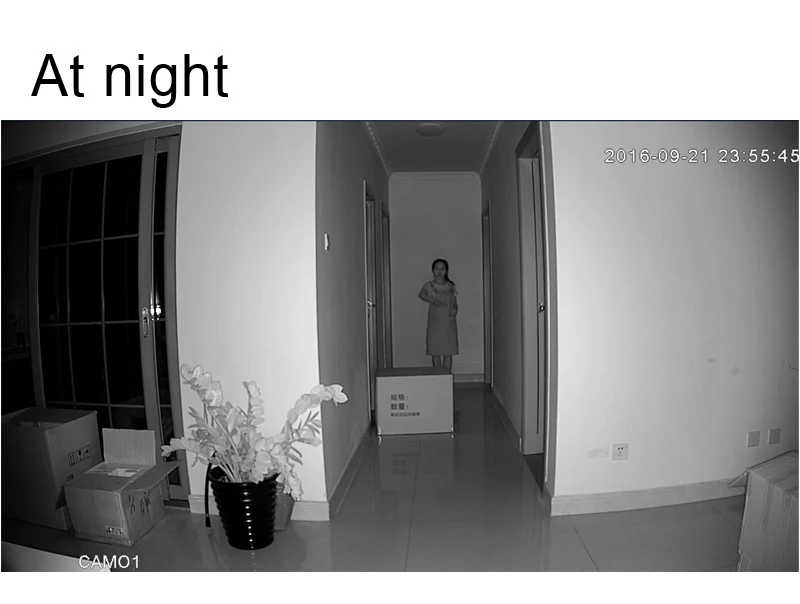

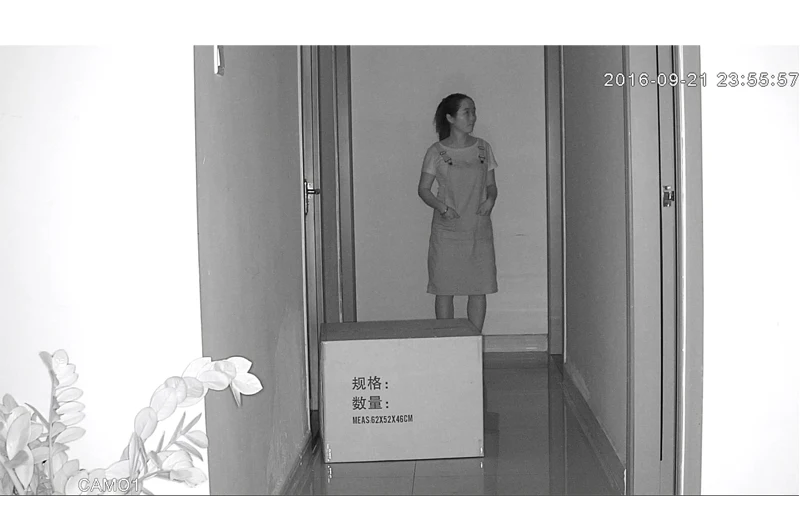

Night Vision

Night vision

Dual IR- CUT Filter auto switch, 24pcs 850nm  5mm LED

Network

Socket

10/100Mb   self-adaptable Ethernet slot

Network Protocol

TCP/IP,HTTP,RTSP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UpnP,P2P ect.

IP address

Dynamic IP and static IP address

WIFI

WIFI 802.11 b/ g/n

Network adaptability

 can auto adjust stream and frame rate according to the bandwidth

Others

Housing material

ABS Plastic

Use Enviroment

Indoor / ourdoor

Power supply

DC12V

Working temperature

 -30 - 60 Dagree

RTP

Support RTP, can auto adjust time when restart after power failure.



Motioin Detection

can setup motion detection sensitivity

Alarm notification

E-mail snapshot

System Requirements

Operating System

Win98/ SE/ ME/ win 2000/ win XP/ win Vista/ win7/ win8 / win10 IE5.0, firefox


ip 20
