Item specifics
  • High Definition: 720P(HD)
  • Style: Mini Camera
  • Supported Operating Systems: Windows 7
  • Connectivity: Closed System/CCTV Wired
  • Sensor: CMOS
  • Model Number: XR-IC2MHD
  • Brand Name: XINNRRAY
  • Type: Video Camera
  • Lens (mm): 7.8mm
  • Technology: waterproof
  • Special Features: module

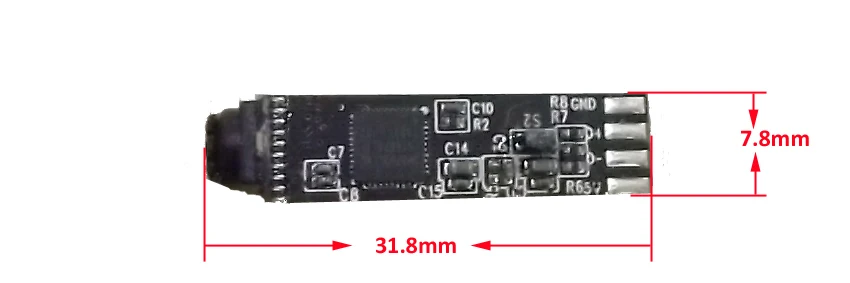

  • Module size: 7.8*31.8mm(D*L)
  • Pixels: 2.0MP
  • Lens: F2.4
  • Image format: VGA/QVGA
  • Max Image resolution: 1600*1200
  • Frame rate: 1600*1200(5fps),800*600(15fps),640*480(30fps)
  • LED: 6 LED
  • Special: USB endoscope Module
  • OS Support: Windows
Product Description

custom module-recommend

cumtom--module(1)_01cumtom--module(1)_02cumtom--module(1)_03cumtom--module(1)_04cumtom--module(1)_05cumtom--module(1)_06cumtom--module(1)_07cumtom--module(1)_08



Newest 2.0MP HD  Mini 7.8mm USB Endoscope Module for DIY1600*1200 Inspection Camera 6 LED full Accessories as Gift XR-IC2MHD



 features



This Mini USB Inspection Endoscope use optoelectronic technology to investigate hard-to-reach area. It helps you to diagnose broken part, weld point and machine equipment to save time and increase productivity. It is also can be used in medical treatment.
Main Feature

  •  2.0MP CMOS camera.

  • Capture snapshot image or video in VGA format with 1600*1200 resolutions.

  • It has built-in LED light (with Brightness Control) on camera head to illuminate the inspection area.

  • This inspection camera has many applications including ear, nose oral & throat treatment, HVAC inspection, vent pipe, machine equipment, engine, utomotive, boat, aircraft inspection.

Specifications

  • PCB Size: 7.8*31.8cm

  • Pixels: 2.0M pixels

  • Lens: f 2.4

  • Image format: JPEG

  • Image resolution: 1600*1200/1280*1024/1280*720/640*480/320*240

  • Frame rate: 1600*1200(5fps),800*600(15fps),640*480(30fps)

  • USB interface: USB 2.0

  • Product weight: 50g

  • Package size: 5 * 5* 5cm

  • Package weight: 80g

  • OS Support:Windows 7/Windows Vista/Windows XPLanguage:Multi-language

  • Auxiliary lighting:6 white LED(brightness adjustable)------Note:the information just updateed.

  • Focal:3-5cm(50cm-infinity customizable,MOQ 50pcs)

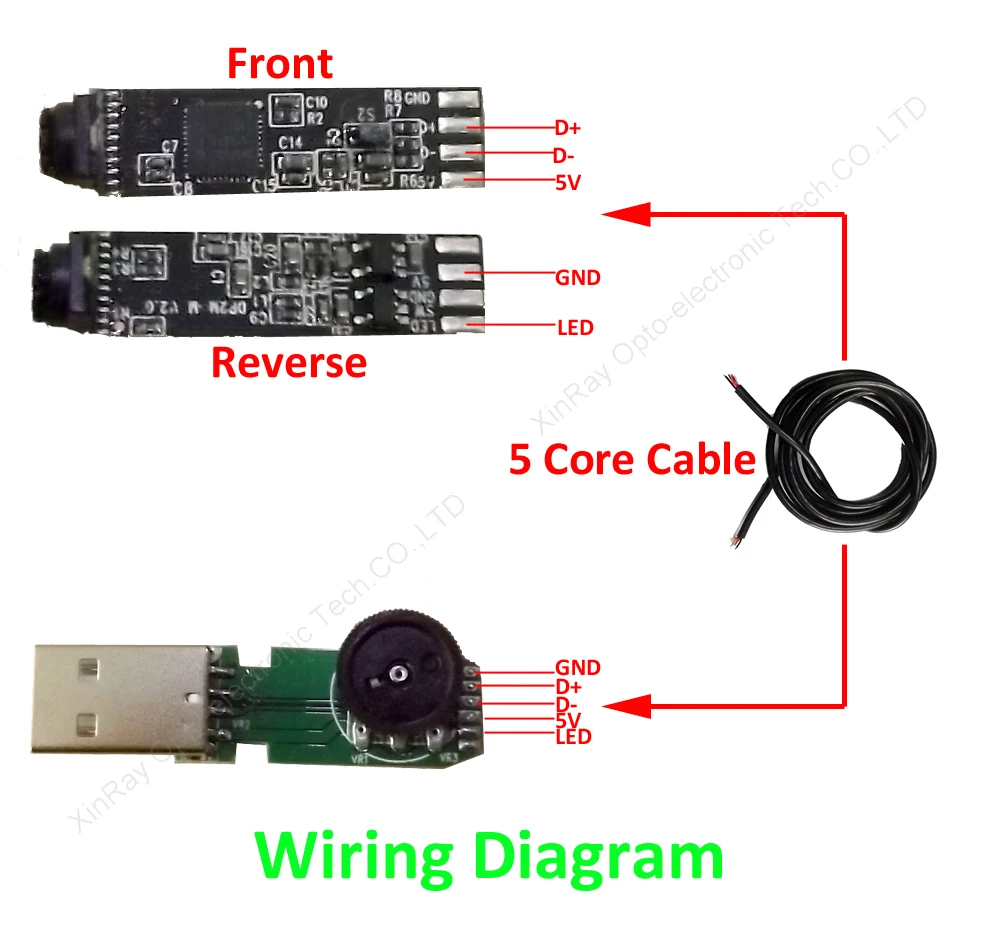

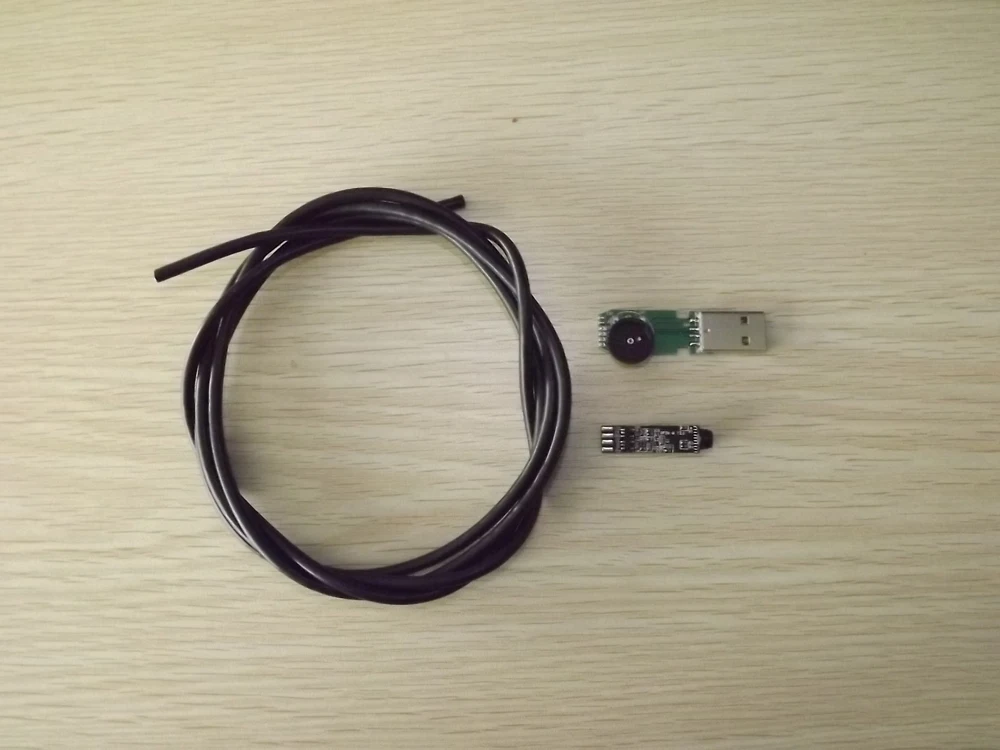

Package:

  • 1 * USB Endoscope

  • 1 * 5 cores usb cable 50cm

  • 1 * USB male connector(include PCB and potentiometer)

Please tell us you Email address when place order,and we will send software to you.

Factory Outlet,welcome wholesale or OEM/ODM!

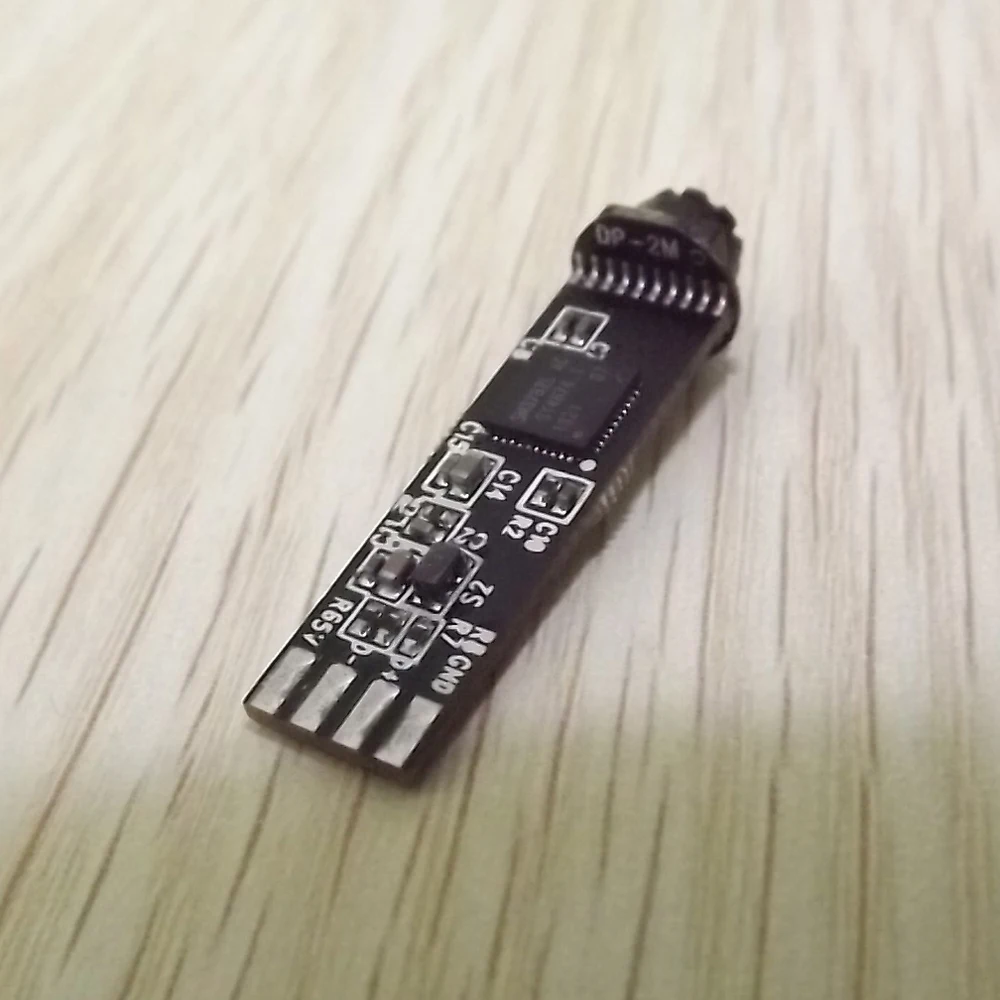

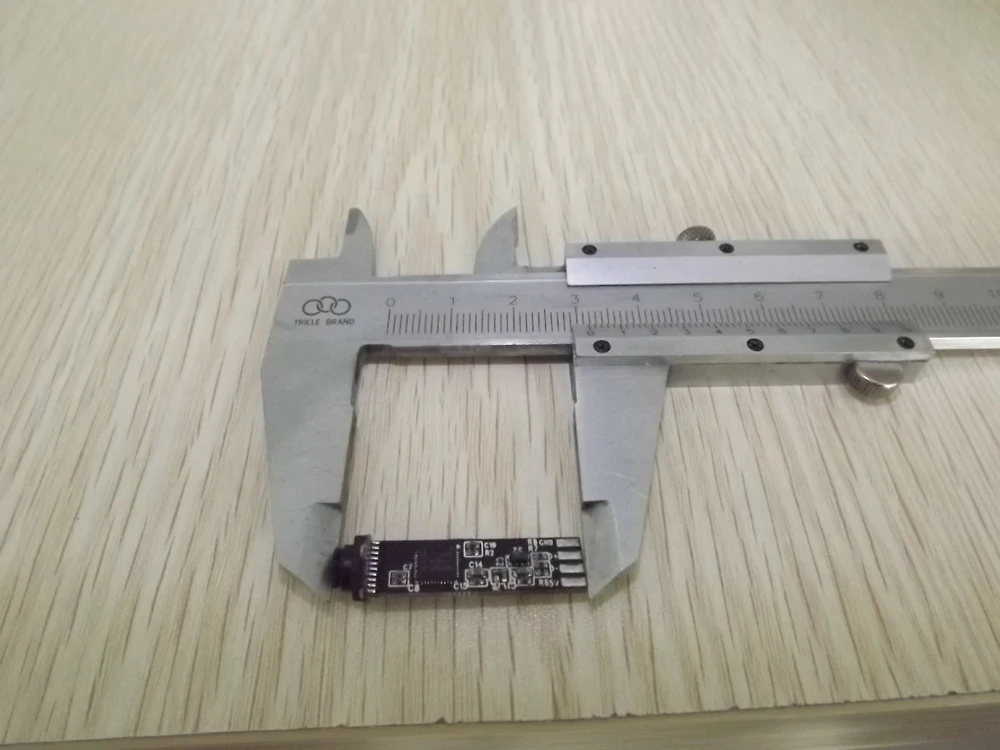

photo show

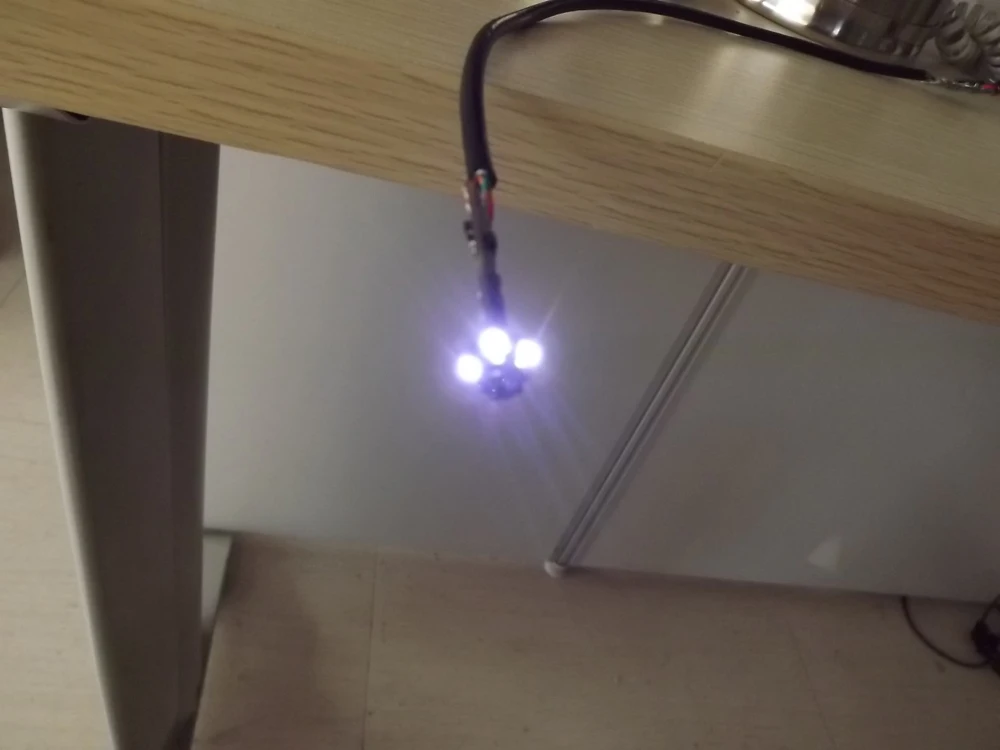

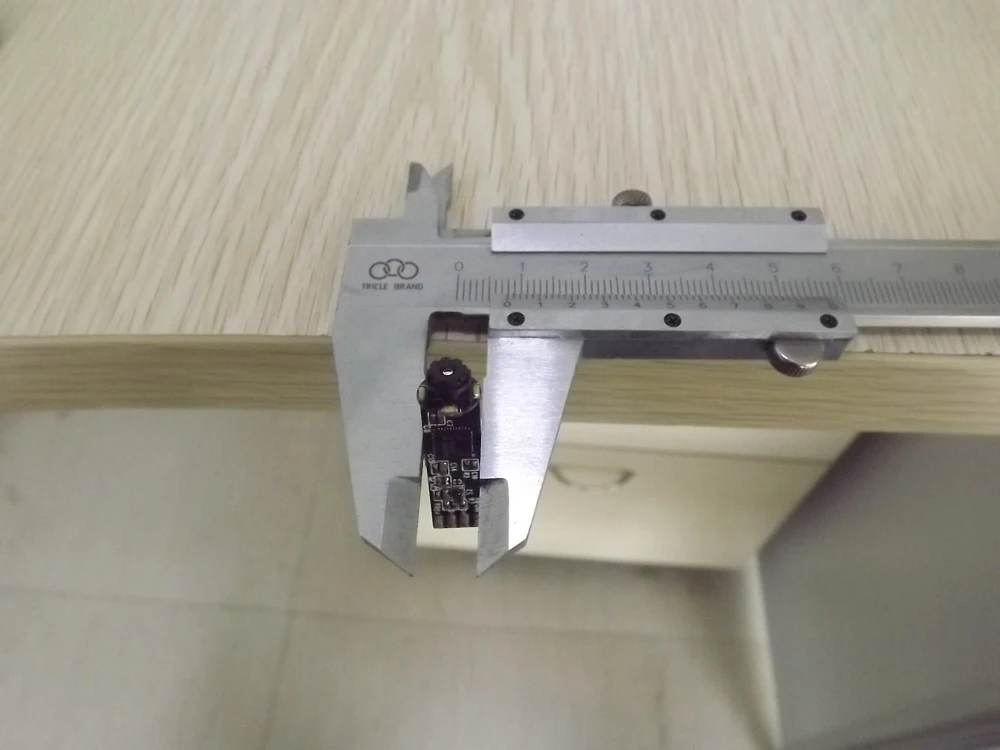

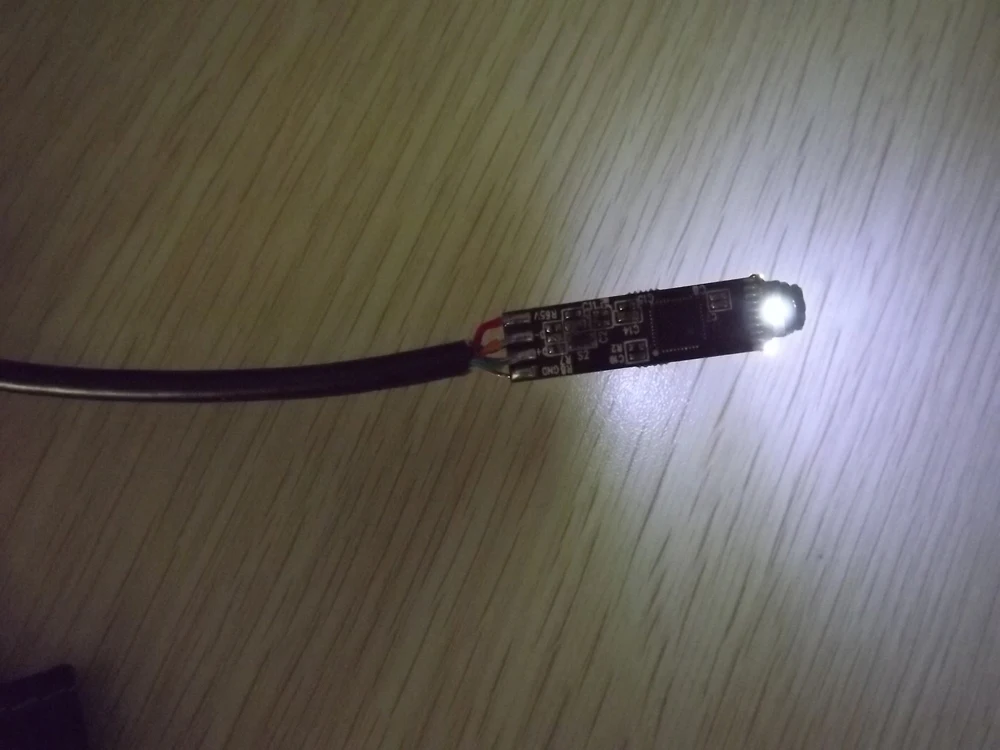

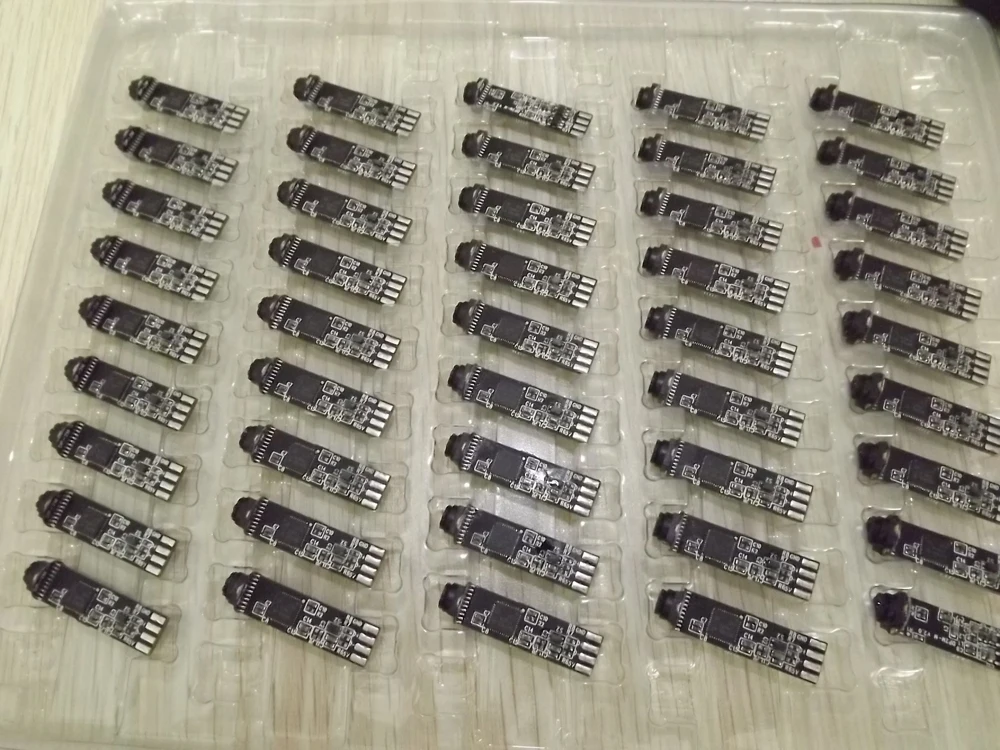

826-827-1 (1).JPG 826-827-1 (2).jpg 826-827 (8).JPG 826-827 (6).JPG 826-827 (4).JPG 826-827 (5).JPG 826-827 (9).JPG 826-827 (11).JPG 826-827 (12).JPG 826-827 (13).JPG 826-827 (14).JPG
Real shot by XR-IC2MHD
Fri Apr 18 16-54-28.jpgFri Apr 18 16-54-50.jpgFri Apr 18 16-56-05.jpgFri Apr 18 16-57-10.jpgFri Apr 18 16-57-52.jpgFri Apr 18 16-56-17.jpgFri Apr 18 16-56-40.jpgFri Apr 18 16-58-38.jpg

The module is used in USB endoscope by default,the focal length is 3-5cm.
50cm-infinite focal length is customizable,but the mini order is 50pcs.Below is the real shot of CCTV camera function.

Fri Apr 18 16-48-57.jpgFri Apr 18 16-49-39.jpgFri Apr 18 16-47-30.jpgFri Apr 18 16-48-20.jpgFri Apr 18 16-49-11.jpg
