Item specifics
  • Alarm Action: Local Alarm,Email Photo
  • Minimum Illumination(Lux): 0.01
  • Sensor: CMOS
  • Supported Mobile Systems: iPhone OS,Android
  • Dimensions (L x W x D)(mm): D50
  • IR Distance(m): 0M
  • Supported Operating Systems: Windows 7,Windows 98,Windows XP
  • Wall Bracket: Side
  • is_customized: Yes
  • Brand Name: numenworld
  • Color: Black
  • Video Compression Format: H.264
  • Model Number: NCV-I01M1W
  • High Definition: 720P(HD)
  • Connectivity: IP/Network Wireless
  • Style: Mini Camera
  • Power Consumption(W): 5W
  • Viewing Angle (Degree): 75°
  • Installation: Embedded
  • Network Interface: Wi-Fi/802.11/b/g
  • Type: IP Camera
  • Sensor Brand: SONY
  • Power Supply(V): 5V
  • Lens (mm): 3.6mm
  • Special Features: mini ip camera
  • Technology: AP camera
  • Sensor: Hi3518E+OV9712
  • SD Card Slot: Yes (Max 64G )
  • Remote Viewing: Via Cloud or APP ( XMEYE ,Family Center )
  • Housing Material : metal

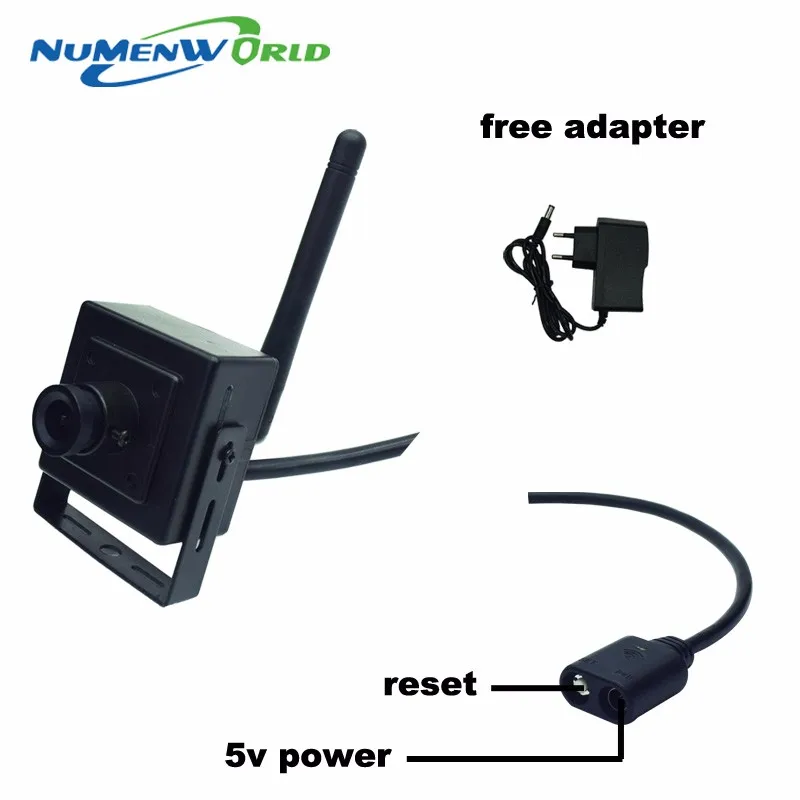

  • Connection: DC +Reset key
  • High Definition: 720P(HD)
  • Network Interface: Wi-Fi/802.11/b/g
  • ONVIF: No ( Just supports OUR NVR )
  • Ships From: shenzhen
  • Viewing Angle (Degree): 75
Product Description

42

Mini  Wireless IP cam 720P SD HD P2P 802.11b/g/n wifi network IP Camera Micro TF Card Surveillance Camera IOS & Android APP



Feature:

Supports Wi-Fi, a key WPS function;

Support Micro SD card,up to 64G;

Support for mobile video surveillance(iOS,android);

Support cloud service, network penetration, alarm information pushed to phone ,etc.

Support Website Interface in IE ,cloud ( XMEYE.NET ) in IE ,firfox,Safari,Chrome and so on.

Support AP and Router Mode ,one key connect WIFI without wired Ethernet in AP mode !

Not Support ONVIF ;just can connect our CMS software and Our NVR ( XMEYE )


Specifications :

System Structure : Dual-core 32-bit DSP HI3518E

Sensor : 1/4\'\'OV9712 CMOS

Video compression : H.264,support dual stream;support stream 0.1M-6Mpbs

adjustable ;support frame rate from 1 to 25 frames/sec adjustable

Lens :1080P 3.6mm default ( 2.8mm/6mm/8mm optional)

Image output : Main Stream : 1280*720 ; Sub stream : 704*576

IR Cut Filter : Yes

Mobile Monitoring : Support IOS & Android With APP XMEYE or Family Center

Remote Viewing : Supports ( XMEYE.NET )

IR LED : 4pcs array IR LED With 5-30Meters IR Distance

Woring Temperature : -20 to 60 degree

Power : 5V  2A ( INCLUDED power adapter)

SD Card Slot : Support  Max 64Gb ( NOT INCLUDED SD card )



There are two modes for this camera,one is AP Mode ,the other Router Mode :

AP Mode default !!!if you want use router mode,please click reset button change the mode !!!!

We suggest using the Router Mode ,since in Router Mode,you can view remotely , connect to our NVR and so on !

Open the camera to install the Micro SD card please !


 FAQ :


Q :What\'s APP the camera use ?

F: Both XMEYE and Family Center are Ok !

Q :What\'s the default Wifi Name and password of the camera in AP Mode ?

F : The Wifi Name begins with "beye_xx " ,and the password is 1234567890

Q :How about the Recording Capacity

F:For 720P,it costs about 1Gb/Hour,we suggest you use the motion detection to save the capacity

   Or you can connect to the NVR in Router Mode


Package including:

1* 720P Wireless IP Camera with bracket
1* antenna
1* 5V power adapter
1* CD (including introduction)


6




57

 1213

1112

131415

16

Operation Overview For AP Mode :

1.Plug in the power supply with the camera,open the mobile Phone WLAN/Wi-fi  setting

   Click the camera hotspot(named with beye_xxxx) ,click it to connect :

2.Input the password(default is 1234567890),click Connect .

3.After mobile phone connected to the camera hotspot,

click the “Family Center” or " XMEYE"  icon to open it ,on the main interface,click Video




  Operation Overview For Router Mode :

1.After camera connect with power supply,please press 4 SECOND(no more than 4second) the RESET button,you will heard a little click voice from the camera, like”ka”,reset ok.  After mobile phone connected local WIFI, opne the “Family Center” or " XMEYE "  APP.Clicck the attached  ICO

2.Submit your wifi router\'s SSID and password ,then be sure to click the checkbox as below picture shows



3.After few seconds searching,if everything is normal,it will have the Green ICO ,click it to finish the steps !

WIFI 1-1











WIFI 2-2



1234(1)



12



Suitable for road, warehouse, underground parking lot, bar, pipe, park and dark or light environment and require  high-definition.

3



1.We will send the goods within 1-3 working days after your payment is verify by Aliexpress.
2.Our free shipping only included China post air mail ,and the weight should be within 2KG. Please notice that the China post air mail  are slowly.
3.If you want to send by EMS.DHL and UPS, you should pay for the shipping cost.
4. Delivery time:EMS:5-14 days; DHL/UPS: 3-7days; HongKong or China post: 7-25 days.

4



1. All products have been checked and packaged in good condition before they are shipped.
2. We promise warranty for quality in one year and we will repair it free of charge. The returning shipping should be paid by customer.
3. If you need to buy more goods, but the price is not very cheap, or did not find in our store, please contact us!
4.Our free gift is send at random.The picture just reference!

5



We will work with you to until you are satisfied.  we sincerely hope that you can leave us a positive Review, for any reason you are not satisfied with your purchase, please contact us through "My Messages" or "Ask Seller Questions" . PLEASE DO NOT leaves us 1, 2, 3 –star.
