Item specifics
  • Alarm Action: Email Photo
  • IR Distance(m): 30M
  • Viewing Angle (Degree): 85°
  • High Definition: 1080P(Full-HD)
  • Technology: Infrared
  • Connectivity: Closed System/CCTV Wired
  • Style: Dome Camera
  • Minimum Illumination(Lux): 0Lux (IR On)
  • Color: White
  • Sensor: CMOS
  • Supported Operating Systems: No
  • Model Number: VI-DH200AHD
  • Network Interface: None
  • Wall Bracket: Ceiling
  • Brand Name: Witrue
  • Power Supply(V): DC12V
  • Installation: Ceiling
  • Sensor Brand: SONY
  • is_customized: Yes
  • Power Consumption(W): MAX 6W
  • Dimensions (L x W x D)(mm): 95*95*65mm
  • Special Features: Vandal-proof
  • Lens (mm): 3.6mm
  • Type: Video Camera
  • Material: Metal vandalproof
  • Chipset: Sony IMX323 sensor camera
  • cctv Lens: 3.6MM/6MM/8MM optional
  • Color: White
  • Type: surveillance camera
  • infrared: 2pcs array led
  • Night vision: 30M IR view distance
  • Resolution: Ful HD 1080P
  • Application: AHD cctv system
Product Description

NEW PRODUCTS

WE

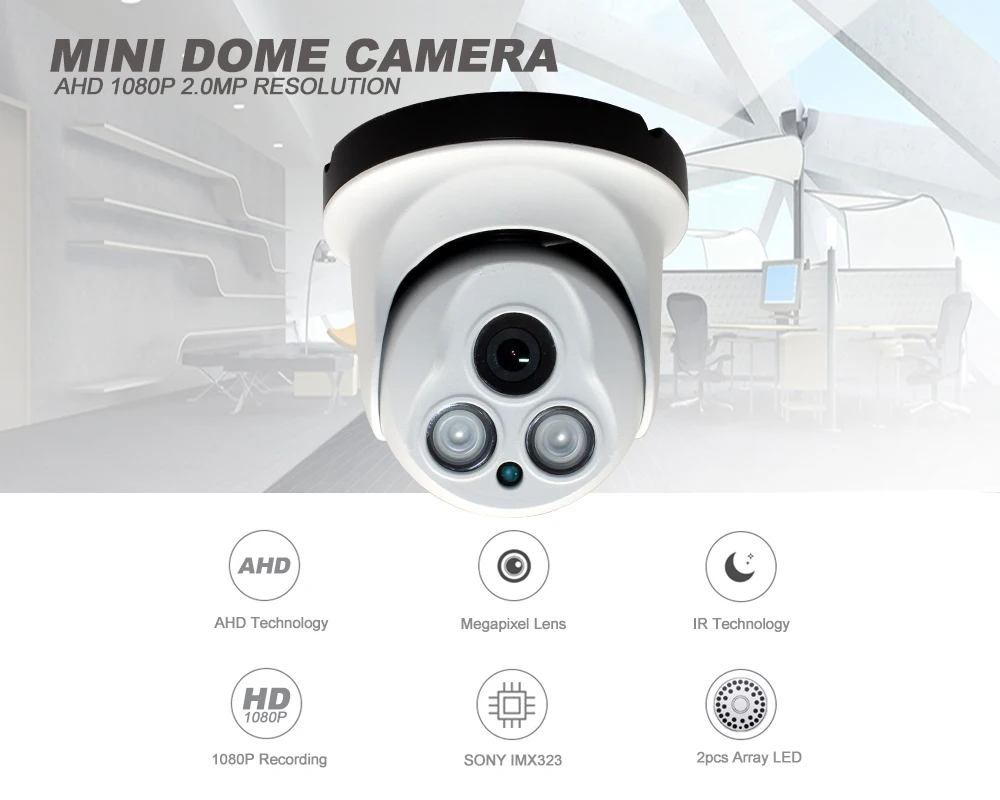

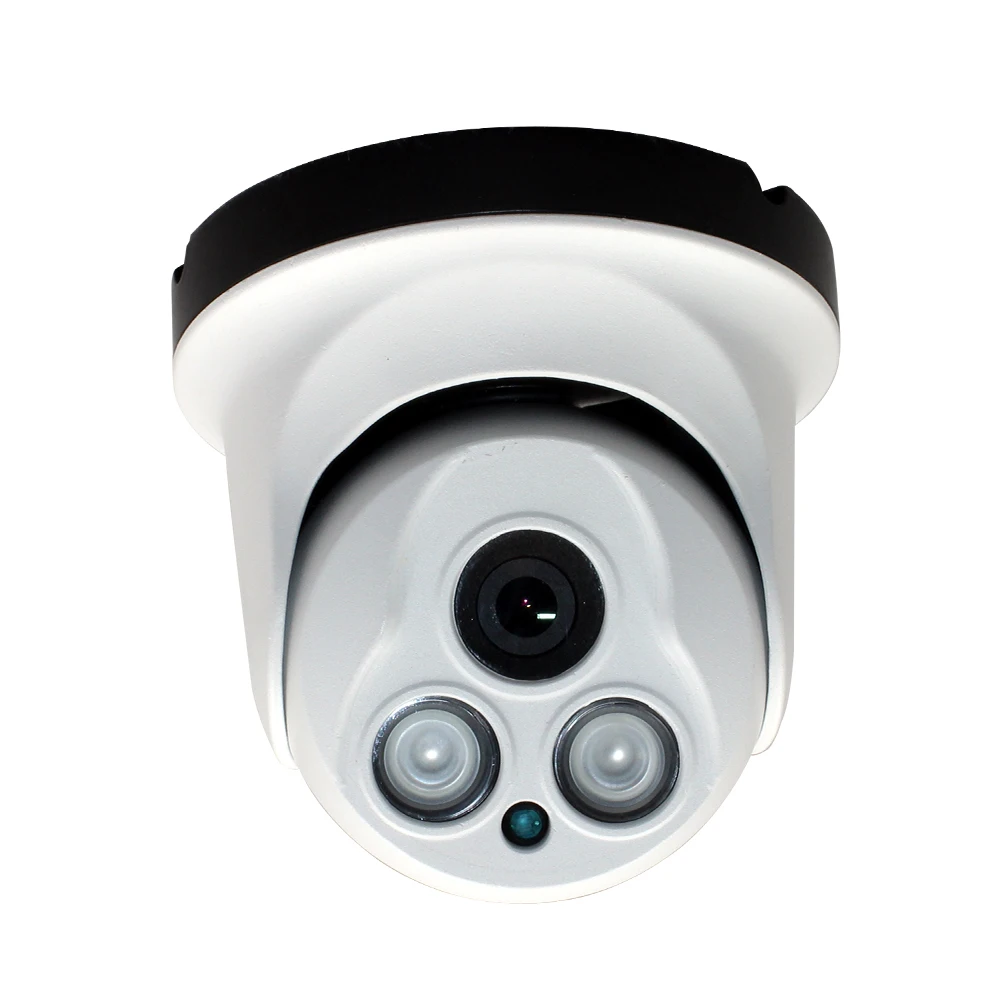

AHD video surveillance security camera Sony IMX323 sensor HD 1080P metal case vandalproof  2pcs array led 30M IR night vision

11 12 13 14 15 16 17 18 19 20
PRODUCTS SHOW

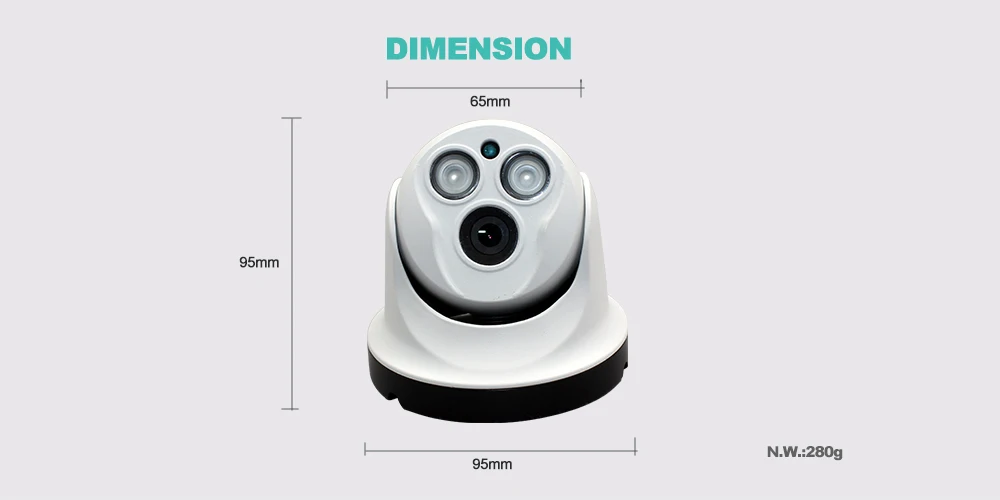

01 02 4 DIMENSION



SPECIFICATION

Type: Mini  Vandalproof Dome Surveillance Camera

Technology: AHD

Chipset: Sony IMX323

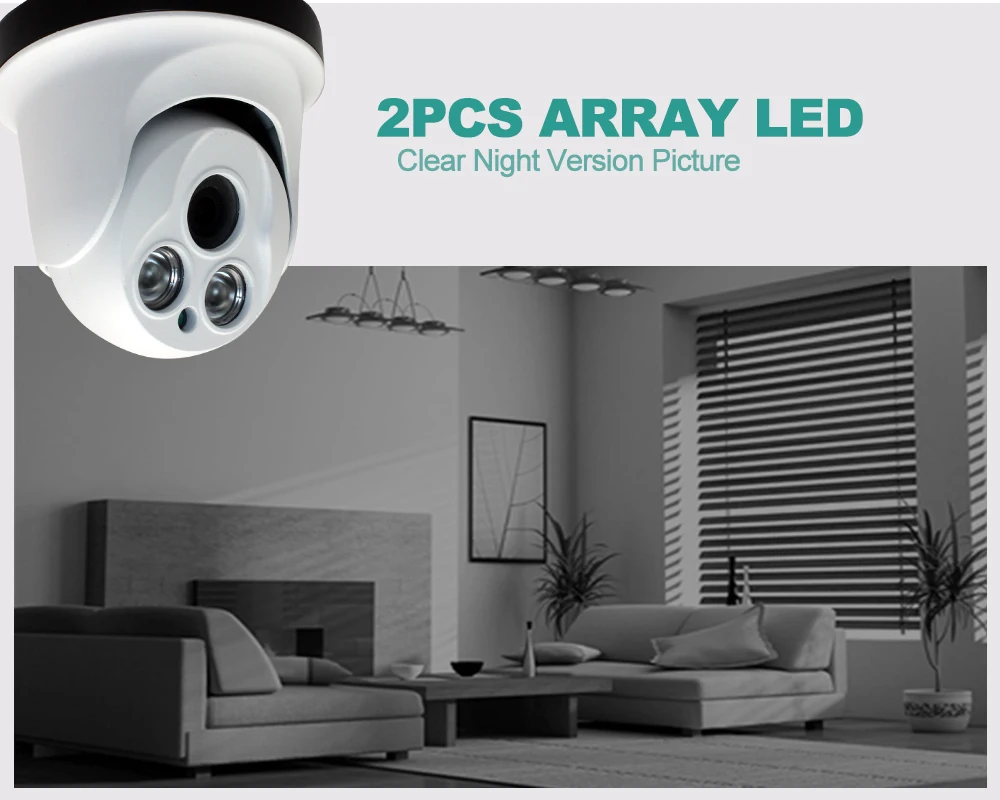

IR Technology: 2pcs Array LED

IR Distance: 30M IR View Dstiance

Lens: 3.6MM/6MM/8MM Fixed lens Optional ( Default with 3.6MM Lens)

Meterial: Metal case, vandalproof



Model No. VI-DH200AHD
Camera
Image sensor 1/3" progressive scan CMOS
Lens 3.6MM/6MM/8MM  Optional
Night vision 2 PCS Array LED  IR range:30M
Day & Night IR cut filter with auto swtich
System signal PAL/NTSC
Effective pixels 1920 x 1080 (2.0 Mega Pixel) AHD-H
Min. Illumination 0.01Lux / F1.2 (AGC ON), 0 lux with IR
Shutter 1/25s to 1/100,000s
Video transmission 500 Meters via coaxial 75-5 cable
Frame rate 50 Hz: 1920 x 1080 @ 25 fps
60 Hz: 1920 x 1080 @ 30 fps
HD video output 1 Analog HD output
General

Operating humidity 90% or less
Power supply 12 VDC (not included)
Power consumption Max. 6W
Weatherproof NA
Weight 350g



PACKING



  •  1 X Camera
  •  1 X Screw Bag
  •  1 X Manua



     Note: This camera come wihtou power adapter, if you need power adapter, you can buy by clicking below picture

power adapter







attention

FEEDBACK

We are committed to your satisfication. your positive feedback and 5 stars ratting will be highly appriciated. if you are not satisfied by any means, please give us an opportunity to offer you a proper solution. you are welcome to contact us through "My Messages" or " Ask Seller Questions" before leaving neutral or negative feedback. you can be assured we will give you the best solution for you. PLEASE DO NOT leave us 1.2.3 star seller ratings.

TROUBLESHOOTING

Please feel free to contact us through Aliexpress message center or order page for any problem. our customer service and tech support will do our best to help you out.

SHIPPING

Some products are free shipping with small quantity. should you need buy bigger quantity with wholesale price and need better shipping price, please feel free to contact us, we will check the best shipping method with best shipping price for you.

Buyer are responsible for additional COD charges, VAT, Brokerage fees, duty, or custom fees and taxes. IT\'S BUYER\'S RESPONSIBILITY FOR ANY CUSTOM DUTY FEES THAT MAYBE CHARGED UPON DELIVERY. How much the import duty will be charged it depens on each countries\'s custom policy.

If the items are detained by customs after shipment has left seller\'s country, the buyer is responsible for customs clerance of the detained items.

If the items are refused by buyer because of custom fee, THE BUYER WILL BE RESPONSIBLE FOR THE ROUNDTRIP SHIPPING FEE.

WARRANTY

* All merchandise we sell are in good quantity and have already under strict examination before shipping. we will try our best to avoid any quality problem before shipping
* We promise warranty for quality for 1 year and should be any problem occured, we will repair it free of charge. the returning shipping should be paid by buyer
* we are committed to your satisfication. if you are not satisfied with the products, you can return it for exchange, but please contact us before return. and buyer pay for the returning shpping charge.
* All treturned items must be in good condition. Men made defects are not guarranted, such as broken, scratch, etc.



related produts



Packaging Details
  • Unit Type: piece
  • Package Weight: 0.35kg (0.77lb.)
  • Package Size: 13cm x 13cm x 13cm (5.12in x 5.12in x 5.12in)
