Item specifics
  • Model Number: Kb-5036
  • Alarm Action: Local Alarm
  • Technology: Infrared
  • Video Compression Format: MPEG4
  • Supported Operating Systems: No,Windows 7,Windows XP
  • Sensor: CMOS
  • Supported Mobile Systems: iPhone OS,Android
  • Lens (mm): 6mm
  • is_customized: Yes
  • Dimensions (L x W x D)(mm): See description
  • IR Distance(m): 30m
  • Minimum Illumination(Lux): 1/4
  • High Definition: 1080P(Full-HD)
  • Special Features: Waterproof / Weatherproof
  • Style: Dome Camera
  • Connectivity: Closed System/CCTV Wired
  • Power Consumption(W): 20W
  • Network Interface: None
  • Power Supply(V): 12v/2A
  • Type: Video Camera
  • Audio Output: External
  • colour: WHITE
  • IR?: 800/NO 1200/yes
  • Is there a package: bubbles box
  • The proposed purchase of: 1200TVL-Is not the
  • Can be customized: yes!Welcome to contact
  • material quality: High temperature resistant plastics
  • Viewing Angle (Degree): 1/4
Product Description

aeProduct.getSubject()

Because the time difference, please free shopping.  ~o(∩_∩)o~

Special circumstances order leave a message to tell me, I will reply to you  ~o(∩_∩)o~ aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()





aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()




aeProduct.getSubject()

Note:800tvl and 1200tvl chips are not the same.

Chip is different. 1200tvl Have IR-CUT, color is better, the effect is more clear. 800TVL did not add IR-CUT
aeProduct.getSubject()





aeProduct.getSubject()aeProduct.getSubject()

Note: this product is no independent packing. We are upgrading to a more secure bubble chamber. You can buy local box packaging.

If you have any special needs, please contact me!! Thank you for your support! We update all kinds of preferential



aeProduct.getSubject()

We can according to your shipping address, choose the suitable transport channel. China post air parcel/or Swiss post air parcel, etc. We will ensure the normal order of the goods + provide tracking of formal transportation way! thank you

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

Packaging included:

1 X 800TVL(or1200tvl)  Camera
aeProduct.getSubject()
aeProduct.getSubject()


aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()



aeProduct.getSubject()

Specifications:

High Sensitivity Sensor

800TVL:1/4 CMOS-0141

1200TVL:1/4 Original Mg139-DSP

Effective Pixels

800TVL:800(H)x600(V)

1200TVL:1280(H)x720(V)



Noise Reduction

2D-NR

Connector: BNC

Defog

Yes

WDR   : YES


Signal system

PAL / NTSC

IR Illuminators:

22 Led

Minimum Illumination:

0.001 Lux,F1.2 , (0 Lux IR ON)

IR distance

30 M

Lens

the default Dome 3.6 mm lens! barrel type 6 mm,

Back Light Compensation

Auto

White Balance

Adjustable by OSD menu

IR CUT:

800tvl:NO

1200tvl:yes

Shutter Speed

1/60-1/100000 (second)

Auto Iris

Video / DC

S/N Ratio:

48db (AGC-OFF)



Digital Image Stabilizer

Yes

BLC/HLC

Yes

Automatic Scene Recognition

Yes

ATR-EX2

Yes

Video Output:

1.0Vp-p, 75 OHM

Power Supply: 12V DC (Don\'t included)
Operation Temperature -10C ~ 50C / 0F ~ 110 F
Weatherproof YES
Connector

Video:BNC

Power:5.5mm DC Plug





Note: the default hemisphere 3.6 mm lens, barrel type 6 mm,
PAL and NTSC system, according to the state of your own, or you can ask a friend if you don\'t know. PAL/NTSC friends don\'t choose the wrong oh, don\'t blame me!! ~
When We found that you buy wrong, may help you modify, just for your better use
If you want other size, other systems and other requirements, other colors,you can order directly, only need to leavea message on the order or contact us
-------------------------------------------------------------------------------------------------------------------
1200TVL:

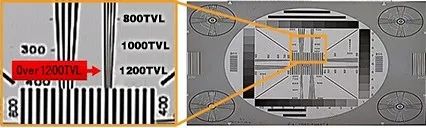

1.High Resolution
Higher horizontal resolution of over 1200TVL by 1/3`cmos image sensor
aeProduct.getSubject()

2.Low Light Performance

High sensitivity:More brightness and color in even low luminance.

Clear image under IR LED:Not saturated image by "IR optimizer".

-aeProduct.getSubject()

3.Noise Reduction(3D-NR)
Noise reduction is a function that reduces the image noise in order to improve the image quality of the camera. In particular, it reduces the noise which is generated under low-brightness shooting conditions and other high-gain states.

aeProduct.getSubject()

4.Defog

Defog function provides high contrast picture. Effio-A detect foggy condition automatically and correct suitably.Especially that is useful for air pollution such as PM2.5 and sandstorm.

aeProduct.getSubject()



5.Wide Dynamic Range
The Wide Dynamic Range (WDR) is a function that it can acquire natural images with fewer blown out highlights and blocked up shadows by combining a multiple number of images, shot at different exposure times, using digital signal processing.

aeProduct.getSubject()

6.High Color Reproduction

More excellent color reproduction
Wide range ATW [1,800 K to 10,500 K]

aeProduct.getSubject()

7. ATR (Adaptive Tone Reproduction)
Gradation compensation to improve image contrast. Improvement of loss of dark detail and overexposure area

aeProduct.getSubject()



aeProduct.getSubject()





aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()



aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()

Shipment:

For most items , we can send out the goods within 2-7days , but some items are new arrivals, we need time to order from the factory.
That is just assured that the goods we sell are orignal genuine products. so pls be patient for the products.
Our servicer also will contact you to explain the delivery time.
Thanks in advance for your understanding.BTW,The shipping cost does not include any import taxes, and buyers are responsible for customs duties.
Returns:

We would try our best to serve you, and we accept the reture for any reason within 2 weeks from the date of your receipt. So pls just make sure that the goods are in their original package and conditions.
If the items are lost or damaged on the way to us, the buyer needs be responsible for the loss.
The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
The buyer would be responsible for the shipping freight to return the goods.
Feedback:

The clients\' satisfaction and positive feedback is very important to us.  Please kindly leave positive feedback and 5 stars if you are satisfied with the goods and services.
If you have any problems with our items or services, please feel free to contact us firstly before you send negative feedback.  We will do our best to solve any problems and provide you with the best customer

aeProduct.getSubject()



Trouble and Solution:

1. No Picture after providing power
May be the power supply voltage abnormity, please check the power supply voltage and pole whether exactitude.
Please check all the conecting cable and monitors whether be connected correctly or not.

2. The picture level direction have flowing interference ripples
May be caused by the power supply AC ripples, it need filter the wave of the power supply.
Check the monitor and peripheral equipments used.

3. The picture background color changes continuously
The fluorescent lamp\'s electromagnetic field cause color roll. This is proper phenomenon of the cameras.
Reduce the fluorescent lamp numbers or increase the distance between the camera and the fluorescent lamps can
improve it.
Use Power supply external sync. Camera can solve it.

4.The picture smear too mass
The power supply\'s voltage unstable
Connecting cables not connect correctly or have high impedance.
