Item specifics
  • High Definition: 2.0 Megapixels
  • Alarm Action: FTP Photo,Email Photo
  • Technology: Infrared
  • IR Distance(m): 25-35m
  • Sensor: CMOS
  • Supported Mobile Systems: iPhone OS,Android
  • Power Supply(V): 220V
  • Supported Operating Systems: Windows 7,Windows 8,Windows XP
  • Wall Bracket: Side
  • is_customized: Yes
  • Power Consumption(W): 6W-7W
  • Video Compression Format: H.264
  • Brand Name: Techege
  • Special Features: Waterproof / Weatherproof
  • Color: White
  • Installation: Ceiling
  • Type: IP Camera
  • Connectivity: IP/Network Wired
  • Model Number: YN-IPC-BT635Z-20
  • Style: Bullet Camera
  • Network Interface: RJ-45 10/100Mb Ethernet Slot
  • Lens (mm): 2.8-12mm Auto Zoom
  • Chip: HI3516C + SONY322
  • Meterial: Metal housing
  • Features: Waterproof / Weatherproof ONVIF 2.0 P2P
  • IR-led: 2 pcs Array IR CUT
  • Day& Night: IR cut filter with auto switch
  • P2P Phone APP : Xmeye
  • Image Sensor: 1/ 2.8" CMOS
  • Mobile Phone Viewing: Yes
  • Image Output: 1920 *1080 full HD
  • Technology: super wide dynamic CMOS sensor
Product Description



34

56e7afc42d3fc444

Package include
1X2.0MP 2.8-12MM AUTO ZOOM outdoor IP Camera
Installation CD
In Original box

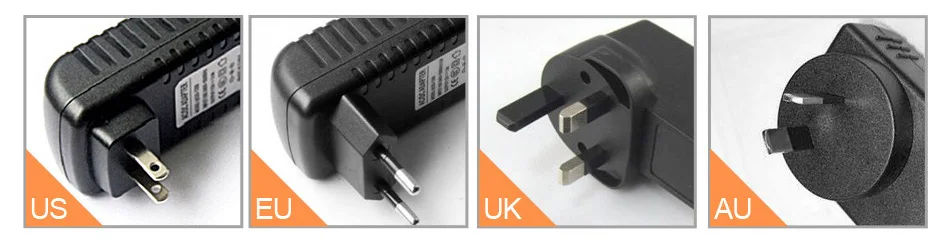

Notes: Power supply not included,if you need power adapter please click below picture to get
HTB1SpXBLXXXXXXEXVXXq6xXFXXX6









 2.0M super wide dynamic CMOS sensor with its high price has been widely used, the product definition is the direction in the future, 1080P universal definition marks the start of the upgrading of products, to provide cost-effective products of high scheme, our company specially developed IPG-53H20PL-*series HD Module which size is 38mm*38mm,using Hass Hi3516Cprogram,for all kinds of shell, filter, sensor, code switching, transmission. Free CMS client, realize the video / preview / playback, support for wide area network transmission. To provide NVR/HVR system with high stability requirements, in order to provide MEYE platform centralized monitoring and management systemrequirements, open SDK.











555

HTB1rYrcKVXXXXXaXpXXq6xXFXXXW

O-AHDT-XQ-08
22HTB1wngfLVXXXXcfXXXXq6xXFXXX1

  • 3D NR Image clear

QQ20170220174205HTB1UObLLXXXXXbdXpXXq6xXFXXXW



3



IMG_4847

008



HTB1x_OQLVXXXXcmXFXXq6xXFXXXLHTB1tLbJHVXXXXcCXpXXq6xXFXXXA



HTB12fNyOFXXXXbmaXXXq6xXFXXXo



onvif



FAQ :

Q:What’s the default ip address of the camera ?

F: 192.168.1.10 Username : admin  Password : null ( empty ) !



Q: Does the camera supports Motion Detect,FTP,Email alarm, RTSP and so on ?

F: Yes ! All the IP Cameras we are selling supports these functions .



1) Please Setup the motion detection in the CMS software .

2) We suggest the Sever-U and FileZilla FTP Server to upload the video or image.

3) For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .

4) ,RTSP URL for VLC media Player :

rtsp://$(IP):$(PORT)/user=$(USER)&password=$(PWD)&channel=$(Channel)&stream=$(Stream).sdp?real_stream

Example : rtsp://10.6.10.25:554/user=admin&password=&channel=1&stream=0.sdp?real_stream



F: What’re the ports information of the cameras ?

Q : ONVIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567



F:Does the camera support IE ,Chrome ,Firefox and so on ?

Q: Since the plug-in problem ,for website interface IP address URL,ONLY IE supports Multi Language . Chrome,Safari just support Chinese .

For cloud server XMEYE.NET ,it supports multi language



Q:When I finish the steps to add the camera to the CMS list,why it notify “ Can’t find the Device “  even I can see the default ip address 192.168.1.10 in the menu .

F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router.

Please click “Edit Device “ to change the camera’s ip address to make them in the same network segment !

For example ,if your router’s ip address is 192.168.0.1 ,then you need to change the camera’s ip address to 192.168.0.XX .



Connection










Warm Reminder :

To connect camera to computer ,

You need to modify computer\'s IP address so that the camera is connected to the LAN, generally, camera and the router or the computer must be on the same network segment, such as:

IP address of the router or computer is 192.168.1.1

camera\'s IP address must be in the 192.168.1.1~254 range

Factory default setting network parameters of the camera:

IP address:192.168.1.10

Subnet Mask:255.255.255.0

Gateway:  192.168.1.1

PORT:34567



FAQ:

1.Camera cannot find

If the camera is connected, but cannot the find the camera, you can check according to the following steps:
1. Confirm the camera and the computer is in the same local area network (LAN)
2. Whether installed relative CMS software
3. The routers and switches the function or Settings for blocking of the radio signal

4. Check whether the cable is aging, or Ethernet cable is too long lead to signal transmission

4. al serial number 1nsmissi serial number 2

Monitor on your mobile phones



mobile

app

HTB1AuNCKVXXXXboXpXXq6xXFXXXB (1)IE Cloud Security-Video Management System make it easy to monitor what you care no matter where you are!

HTB1wNsYHpXXXXcGXVXXq6xXFXXXg



12345678910

How To Reset The Camera :

reset 1reset 2reset 3reset 4






tiffly wufu







Packaging Details
  • Unit Type: piece
  • Package Weight: 0.6kg (1.32lb.)
  • Package Size: 15cm x 15cm x 15cm (5.91in x 5.91in x 5.91in)
