Item specifics
  • Technology: Infrared
  • Type: CVI Camera
  • Sensor: CMOS
  • Supported Mobile Systems: iPhone OS,Android
  • Supported Operating Systems: Windows 7,Windows Vista,Windows 98,Mac os,Windows 8,Windows XP
  • IR Distance(m): 30m
  • Dimensions (L x W x D)(mm): 93.4mm*79.4mm
  • Power Consumption(W): Max 4W (12V DC, IR on)
  • High Definition: 1080P(Full-HD)
  • Special Features: Waterproof / Weatherproof
  • Style: Dome Camera
  • Connectivity: Closed System/CCTV Wired
  • Color: White
  • Audio Output: 1CH BNC
  • is_customized: No
  • Network Interface: None
  • Wall Bracket: Ceiling
  • Installation: Ceiling
  • Model Number: HAC-HDW2221M
  • Power Supply(V): 12V DC
  • Lens (mm): 3.6mm fixed lens (6mm optional)
  • Image Sensor: 1/2.7" CMOS
  • Min. Illumination: 0.03Lux/F2.0, 0Lux IR on
  • Close Focus Distance: 800mm (1800mm) 31.5
  • Ingress Protection: IP67
  • Language: English
  • DAHUA Logo: Without
  • Power Supply: Excluded
Product Description

Attentions:



Please read the below attentions carefully before you confirm the order in order to avoid any inconvenience to you. Thank you!


1. For the Format of the Device: Please note that we only offer PAL format for all the dahua recorders and cameras we sell online. If you need NTSC format, please contact with us before you order;

2. For DAHUA Brand: We are professional DAHUA products reseller who offers 100% original products manufactured by DAHUA, but we will only offer unbranded products(without DAHUA brand on the product) since 2015;

3. For System Language: All the DAHUA products are with original English version, no other language included;

4. For Production Time: We only have stock for some popular models and our inventory is changing every day. For the models in stock, we will ship out on the second working day since you place the order; for the models which are out of stock, the production will take about 10-20days normally. Please confirm with our customer service before you place the order if you need the goods urgently;

5. For Payment: Besides payment on Aliexpress, we also accept paypal, T/T and Western Union. We will offer 5% discount for the order paid by T/T or Western Union. For quantity order, we only accept payment by T/T or Western Union;

6. For Wholesale Order: We sincerely welcome wholesale customers to extablish long-term business relationship with us. We will offer you the most competitive price when your order is up to certain quantity;

7. For Shipping: We use EMS and other China Post Service as the default shipping method. Other shipping methods are also available like DHL, UPS, Fedex, TNT etc. We will choose the faster shipping method when its real charge is not higher than what you have paid for the EMS. You can also tell me the shipping method which you like before you place the order and we will check the cost for you. Please note that sometimes the system doesn\'t charge the correct shipping cost when your order is up to more than 1pcs, so please confirm with us before you pay if you have doubt;

8. For the Product Warranty: We offer 2-year warranty period(since the date you receive the order) for all the products we sell. The shipping cost of returning for maintenance will be borne by the buyer;

9. For After-sales Service: Please contact with us when you have any technical question instead of contacting with any Dahua agent or Dahua company. We have a professional technical team to help you;



You can also reach us by:

Skype: ancotech_cctv;

E-mail: info(at)ancotech.cn

Thank you for your attentions!!


HAC-HDW2221MFUTUHAC-HDW2221MPJHAC-HDW2221MPJ2

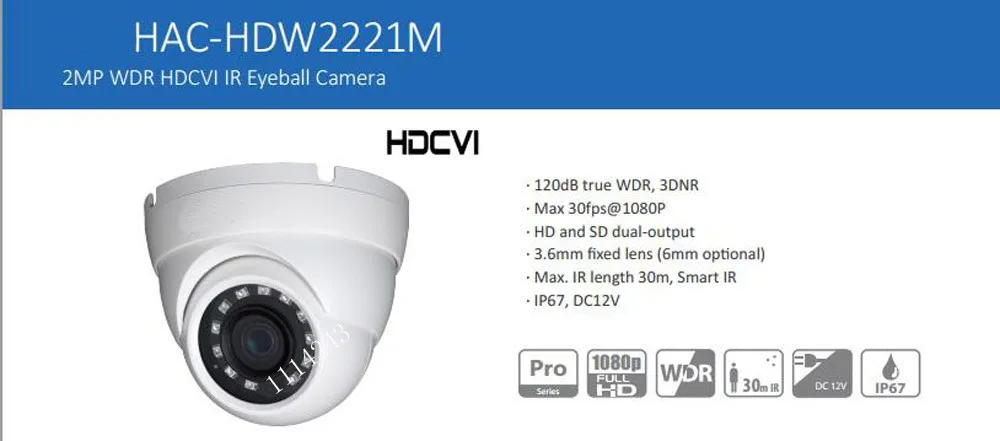

Features:

> 120dB true WDR, 3DNR
> Max 30fps@1080P
> HD and SD dual-output
> 3.6mm fixed lens (6mm optional)
> Max. IR length 30m, Smart IR
> IP67, DC12V



Specifications:

Camera

Image Sensor

1/2.7" CMOS

Effective Pixels

1928(H)×1088(V), 2.1MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1.3s~1/30000s

NTSC: 1s~1/30000s

Minimum Illumination

0.03Lux/F2.0, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 30m (98feet)

IR On/Off Control

Auto / Manual

IR LEDs

12

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

3.6mm (6mm Optional)

Max Aperture

F2.0

Angle of View

H: 90° (59.4°)

Focus Control

N/A

Close Focus Distance

800mm (1800mm)

31.50 (70.87)

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video

Resolution

1080P (1920×1080)

Frame Rate

25/30fps@1080P, 25/30/50/60fps@720P

Video Output

1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / WDR

WDR

120dB

Gain Control

AGC

Noise Reduction

2D / 3D

White Balance

Auto / Manual

Smart IR

Auto / Manual

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

N/A

Eelectrical

Power Supply

12V DC ±25%

Power Consumption

Max 4W (12V DC, IR on)

Environmental

Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

Ingress Protection &Vandal Resistance

IP67

Construction

Casing

Aluminium

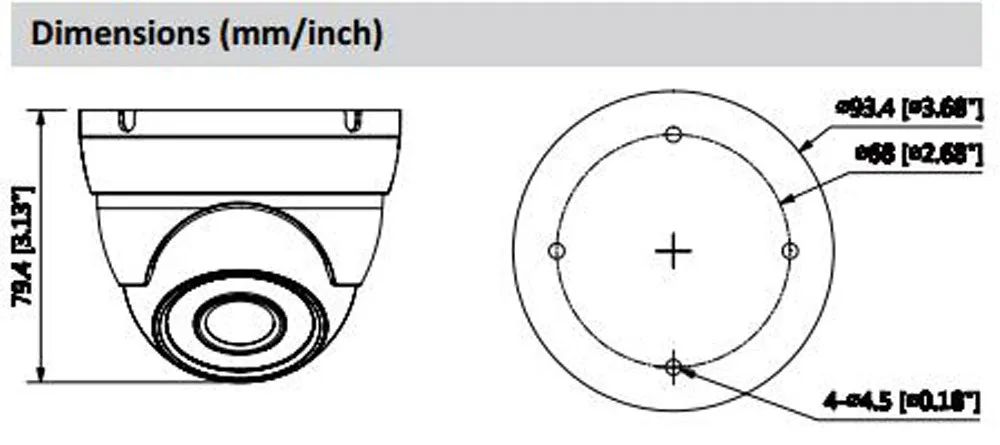

Dimensions

Φ93.4mm×79.4mm (Φ3.68"×3.13")

Net Weight

0.28kg (0.62lb)

Gross Weight

0.35kg (0.77lb)





Packaging Details
  • Unit Type: piece
  • Package Weight: 1.0kg (2.20lb.)
  • Package Size: 20cm x 15cm x 16cm (7.87in x 5.91in x 6.30in)
