Item specifics
  • High Definition: 1080P(Full-HD)
  • Special Features: Waterproof / Weatherproof
  • Power Supply(V): DC12
  • Technology: Infrared
  • Minimum Illumination(Lux): 1/3
  • Connectivity: Closed System/CCTV Wired
  • Model Number: SK-AHD8480PH2
  • Supported Operating Systems: No
  • Sensor: CMOS
  • Lens (mm): 6mm
  • Power Consumption(W): 3w
  • Network Interface: None
  • is_customized: Yes
  • Type: AHD Camera
  • Style: Bullet Camera
  • Audio Output: NONE
Product Description

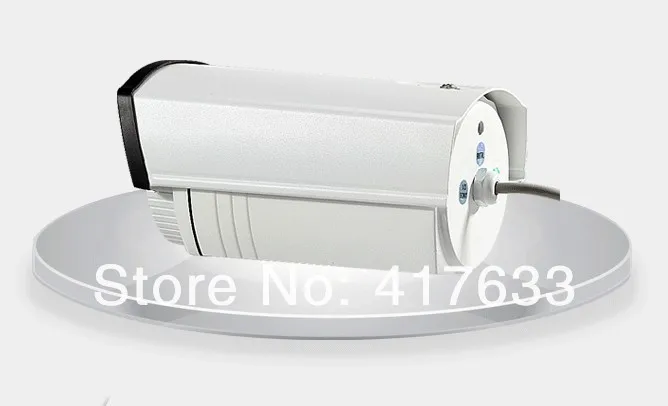

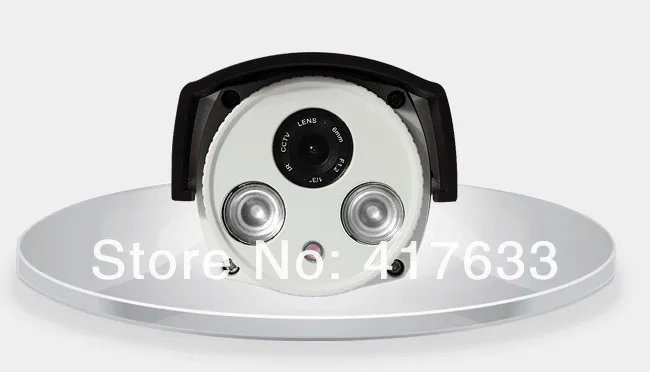

Free Shipping 2mp 1080p AHD (Analog High Definition)  Waterproof IR 30-60m 2PCS Array LED Camera for 500m Coaxial Cable









Description:

AHD is short for Analog High Definition, unique alternative standard for HD data transmission solution over coaxial cable.

It is developed by the reputable video processor designer Nextchip headquarted in Korea, who is well-known for CCD ISP 2040/2041 (760H), 2080/2090 (960H) and CMOS ISP 2441H (1080P).

Compared with other coaxial HD solutions, AHD features easy upgrading current analog system to HD, 500m transmission over 75-3 cable, supporting 10800H/D1 display, open R&D platform and better cost-efficiency.



Features:

Main chip: high performance video processor Nextchip ISP NVP2441H

1080P Image Sensor: 1/2.8CMOS image sensor, Effective pixels: 1920X1080

1080P Video Frame Rate: PAL: 1920x1080 @ 25fps NTSC: 1920X1080 @ 30fps

Video Standard: Follow the AHD and CVBS standard

Maximum transmission distance: Normal 75-3 coaxial cable transmission 500 meters above

Day and night features: support automatic switching IR CUT



Specifications:

Model

SK-AHD8480PH2

System Architecture

Embedded RTOS design, dual-core 32-bit DSP (NVP2441H)

Pure hardware compression, watchdog;

Image sensor

1/2.8"2mp CMOS image sensor

Effective Pixels

HD1080P 2m Megapixel 1920x1080 / D1 / CIF

Video frame rate

PAL 25fps/sec / NTSC 30fps/sec

Minimum illumination

0Lux(IR ON)

Lens

4mm, 6mm.8mm,12mm Optional (Default:6mm)

Day and night function

Auto IR-CUT

Video Tuning

contrast, brightness, saturation, sharpness adjustment

Temperature

-20C~+55C

Humidity

10%~90%





Comparison among different analog HD solutions (AHD, HD-SDI, HDCVI and HDTVI)

  HD-SDI HDCVI HDTVI AHD
Developer   Dahua Techpoint Nextchip
NTSC/PAL Yes Yes No Yes
960H/D1 Support   Yes No Yes
ISP&TX 2-In-1   Yes No Yes
HD Resolution 720P@25/30 720P@25/30 720P@25/30 720P@25/30
720P@50/60 720P@50/60 720P@50/60 720P@50/60
1080P@25/30 1080P@25/30 1080P@25/30 1080P@25/30
Transmission Distance (75-3 Coaxial Cable@720P) 100 500m 300m 500m
Audio Yes Yes No Yes
Coax Transmission Control Signal Yes Yes Yes Yes
DVR HD-SDI DVR HDCVI DVR TVI DVR AHD DVR
Analog Matrix Support Yes No No Yes
Analog Video Distributor Support Yes No No Yes
Anti-interference Capability   Good Good Good
Standard Open to 3rd Party Yes No Yes Yes
Cost High     Low






123



Introduction to Nextchip AHD ISP NVP2431H.

Nextchip e-Catalog V1 23



Nextchip e-Catalog V1 24
