- Model Number: SY806MJID11
- Samrt Home Interface: No
- Communication Interface: Wired
- Access Control: Inductive Card
- Display Screen Size(inch): 7
- Sensor Size(Inch): 1/4
- Answering Mode: Hands-free
- IP Camera Interface: No
- Technology: Digital
- Size: 225 x 128 x 23mm
- Zone Input: None
- Resolution: 420TVLine
- Type: Intercom System
- Camera Sensor type: CMOS
- Viewing Angle (°): 92
- Doorbell: Yes
- Power: 110V - 240V AC
- Kit Configuration: One to One video doorphone
- Installation: Wall Mounting
- Connection Method: Wired
- Display Screen Type: Color
- Waterproof: Yes
- Brand Name: DIYSECUR
- Material: Plastic
- Power: DC 110V-240V
- Camera: Colours
- Type: Video door phone / door bell
- Special function: RFID reader
- is_customized: Yes
New 7" Color Hands Free Video Doorphone with IR Camera Touch Monitor + Magnetic Lock + RFID keyfobs
7" Color Hands Free 125KHz RFID wired Video Doorphone
This wired security system product you are watching now is the latest popular, fashional, goodlooking and convenient door phone kit with 1-camera and 1-monitor which has a large screen and provides a beautiful vision and safe feeling with a very simple installation and usage. It adopts advanced technology and the latest computer chips which highly improves the stability and durability of the system. The design of ultrathin wall mounting will also make this product light and convenient. As to the applications, it can be widely used in apartments, villas, hotels and offices etc.
The funtions mainly include hands-free monitor, two-way intercom, high-definition visibility, lock control, infrared night-vision outdoor station, adjustable intercom volume and screen color of the product. More details are shown as follow.
Furthermore, in order to satisfy most of the customers, a complete doorphone system with 5 RFID keyfobs, a push release button switch have been launched. With this full kit, it will be more convenient to build the full access control system for the home security. You can open the door lock either from indoor or outdoor through several methods, and the details about how to open the door is shown you as follow.
- 7inch color TFT LCD with sensitivity touch panel, low power consumption
- Infared LEDs for night vision, more convenient.
- Rainproof cover design, antioxidative Outdoor Unit with PMMA panel.
- 16 kinds of rings for selection
- The Volume, brightness and contrast can be adjusted
- PMMA panel design on indoor unit, more fashionable and luxury
- Hands free intercom, one-button touch makes perfect experience.
- Comes with 5 RFID keyfobs,a push release button switch
- Supports maximum 4 monitors and 2 outdoor cameras.
Detail shows:

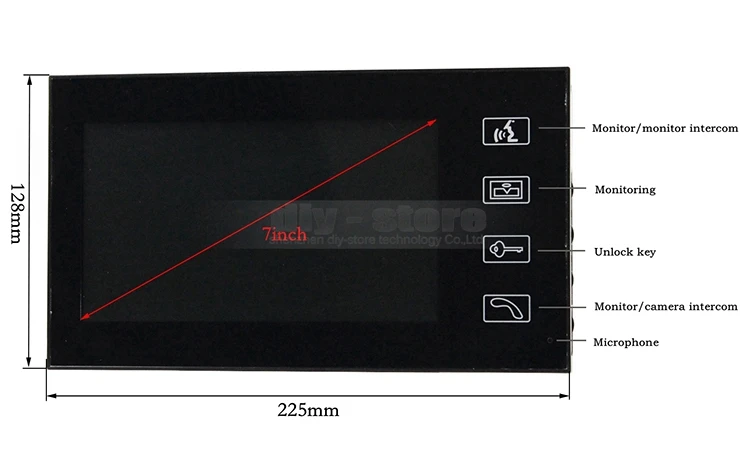

- This door phone intercom adopt advanced touch technology, the full touch panle brings more sensitive touch experience.
- The ultrathin LCD display feels light and convenient. Furthemore, the piano bakes lacquer panel also looks more fashionable, elegant and luxury.

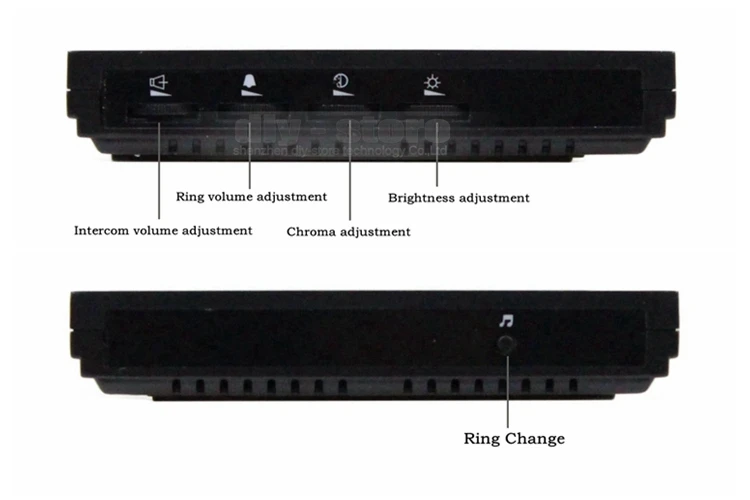

- The Volume, brightness and chroma can be adjusted to meet your need. Besides, there are 16 kinds of music rings for selection.
- The built-in infared LEDs make it available to see the vistor outside at night or at dark. It benefits more for the home security.

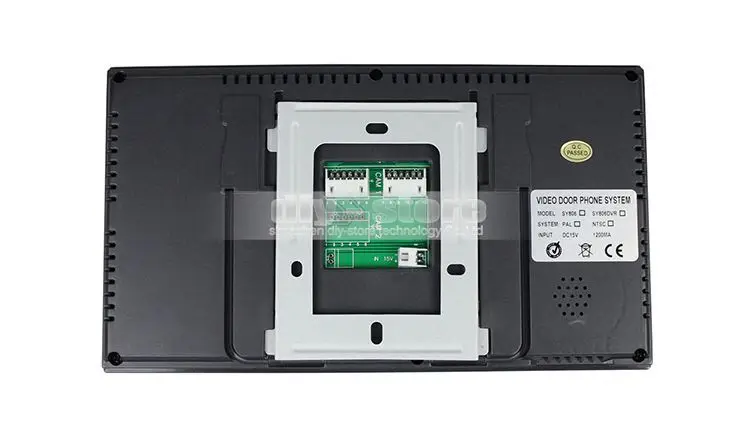

- The back-hang design also is one of the advantages, which make the monitor be installed more easily and convenient. It can be installed anywhere you want.
- The display image in the monitor is very clear for viewing, which will definitly meet the general use.
- The outdoor camera is attached with a rain proof cover to prevent the water. You needn\'t worry about the outdoor camera would be wet in the rainy day.

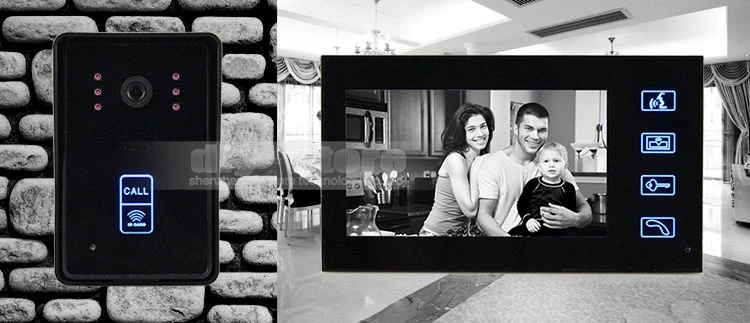

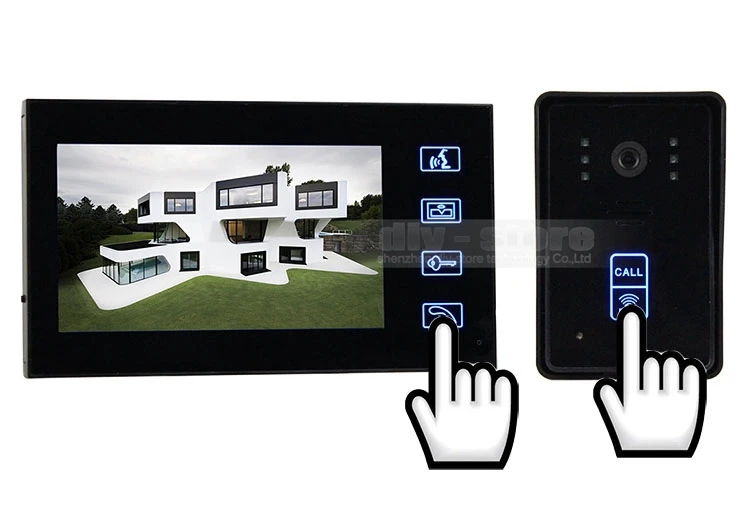

When someone press the call button on outdoor unit, it will active the indoor monitor, monitor will turn on, ring and show the video outside. So you can see who is outside, a postman? a neighbor? a salesman? an old friend? or a burglar? Then you can press the response button on monitor to talk with the people outside, unlock the lock and press the response button again to end the conversion. When the monitor in standby mode, you can see what\'s going on outside by press monitoring button.
Electrical lock and indoor Unlock, make house safer
This door phone can work with 12V electrical lock, so you can connect an electrical lock to this system. With this function, you don\'t need go to the door to unlock for your guest, you just need to press unlock button on monitor. It will bring great convenience for you and your family members.
Magnetic Lock:
It is a High-performance 280kg Holding Force electric magnetic lock which suits for many access control system. This electric lock can meet your need perfectly.
This door phone system can be widely used in Villa, office, private house, and other place needs intercom. It is not only a intercom system, but also a home security system.
Note:
- We provide 1 x 5M 4-core cable. Please feel free to contact us for quotation if you need longer cables.
- The cables are very easy to be found in your local market as they are international standard like cat5 cable.
- The power supply is used to be connected with monitor.
- We only suggest using this type e-lock for this door phone system as shown on the picture, if you want to connect this door phone system to another type e-lcok, you can purchase other type door phone in our store.
- We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
- The total length of the 4-core connection cable can NOT exceed 120 meters.
Specifications:
| Outdoor Camera | |||
| Model No. | MJID | ||
| Night Vision | IR Light, visible within 5 meters | ||
| Vision Angle | 92º Wide Angle | ||
| Resolution | > 420 TV Line | ||
| Plus Control | Automatically | ||
| Power Consumption | Standby: 0.1W; Working: 4W | ||
| Working temperature | -10°c~+55°c | ||
| Installation | Wall mounted | ||
| Size | 168(L)*110(W)*65(H)mm | ||
| Net Weight | 310g | ||
| Indoor Monitor | |||
| Model No. | SY806 | ||
| Screen | 7\'\' wide angle TFT LCD, 16:9 Display | ||
| Resolution | 480*RGB*234 | ||
| Power input | AC100V-240V 50Hz-60Hz | ||
| Power output | DC 15V | ||
| Current output | 1200mAh | ||
| Delay Calling time | 120s ±10% | ||
| Delay Monitoring time | 40s ±10% | ||
| Valid Distance | 80M (4x0.65 mm2) | ||
| Power Consumption | Standby: 0.5W; Working: 8W | ||
| Transmitting Distance of Image | about 200m | ||
| Viewing Angle | 65º | ||
| Adapter Input | AC100~ 240V, 50/60Hz | ||
| Adapter Output | DC 15V | ||
| Working Temperature | -40°c~+70°c | ||
| Standby Temperature | -20°c~+60°c | ||
| Installation | Wall mounted/lift on desk | ||
| Size | 225(L)*128(W)*23(H)mm | ||
| Net Weight | 460g | ||
