Item specifics
  • Brand Name: Grenseure
  • Waterproof: Yes
  • Type: Intercom System
  • Communication Interface: Wired
  • Technology: Digital
  • Camera Sensor type: CMOS
  • Power: 15V DC
  • Material: Metal ABS PMMA
  • Zone Input: None
  • Access Control: Inductive Card
  • Resolution: > 420 TV Line
  • Samrt Home Interface: No
  • Display Screen Size(inch): 7
  • Doorbell: Yes
  • Sensor Size(Inch): 1/4
  • Answering Mode: Hands-free
  • Connection Method: Wired
  • IP Camera Interface: No
  • Kit Configuration: One to Two video doorphone
  • Installation: Wall Mounting
  • Viewing Angle (°): 90
  • Display Screen Type: Color
  • Model Number: XSL-V70F-ID-1V2
  • Camera: 700TVL color in daylight and B/W in night vision
  • Power: 15vdc
  • Color: White
  • monitor size: 7 inch Color LCD monitor
  • type: video intercom / video door phone / door bell intercom
  • wiring type: wired
  • is_customized: Yes
  • RFID access control: yes
  • night vision: Support
  • waterproof: support outside working
Product Description

WIRED 7" TFT LCD HOME VIDEO INTERCOM ID READER SYSTEM

700 TVL Camera, Clearer Video!

Unlock via RFID card/ unlock button at monitor

aeProduct.getSubject()









This Hard-wired Video Door phone Intercom System consists of two 7\'\' color TFT monitor and one door camera. Upgraded chips are adopted for highly stable performance and it has a nice appearance. It is your perfect choice to use in villas with 700 lines CMOS camera, which can achieve monitoring, dual-way intercom and unlocking. You also can monitor outside image even without people pressing the Monitor button on the Indoor unit.

In order to satisfy most of the customers, a complete doorphone system with 5 RFID keyfobs, a push release button have been launched. With this full kit, it will be more convenient to build the full access control system for the home security. You can open the door lock either from indoor or outdoor through several methods.






Features

  • With micro-processing technology, auto-remote control, excellent performance and high reliability.
  • The TFT 7 inch digital color LCD for monitor, resolution 800*480.
  • Clear night-viewing , 24 hours monitoring, calling, speaking and unlocking remote controlling etc.
  • Additional monitor available up to 6(optional) and 4 outdoor cameras at most.
  • TFT color screen with low power consumption, no radiation and high definition.
  • Hands-free intercommunication.

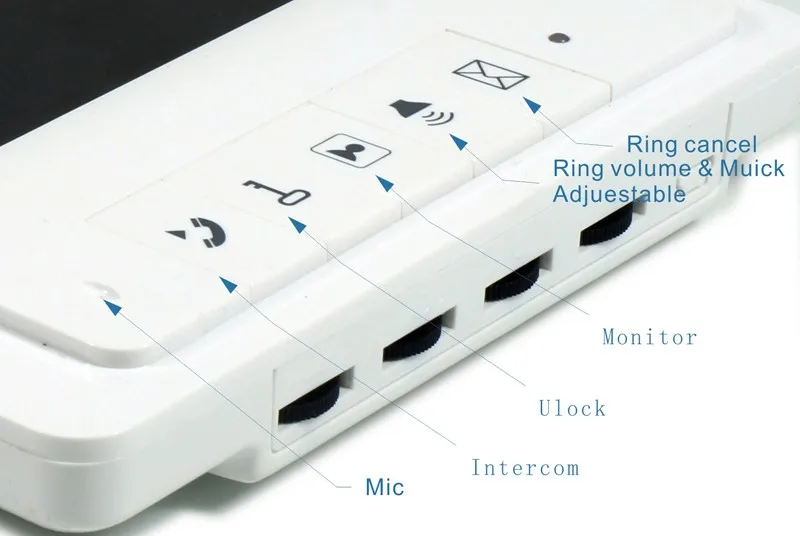

  • Brightness, chroma and volume adjustable.

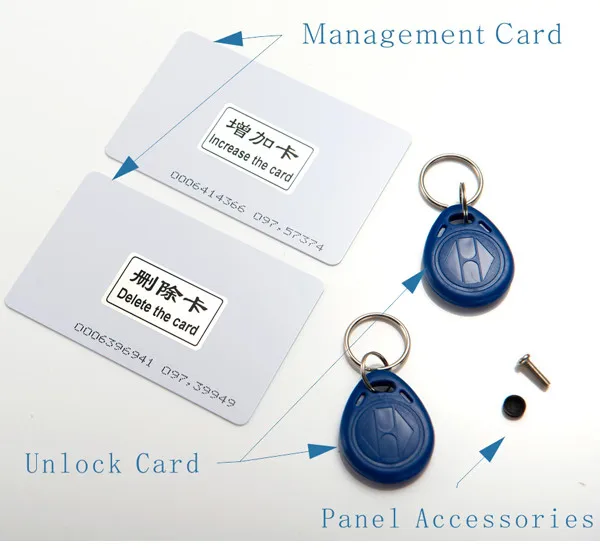

  • Comes with 5 RFID keyfobs, a push release button switch.
  • Support maximum 500 id keyfobs or cards.
  • Supports intercom between two indoor monitors.
  • 25-chord melody rings for option.
  • Cabling: 4-core connection cable
  • 700 TVL Sony Camera.
  • Do not disturb mode, ring cancel function.



Details

It is a door phone which can show you what is going on outside doors on a clearly 7" full color screen of which The Volume, brightness and chroma can be adjusted to meet your need. It can function as a monitor, Press the button of Response/Monitoring, the screen will show you the picture outside doors, which makes you kown the outside world staying in the house.



aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject()

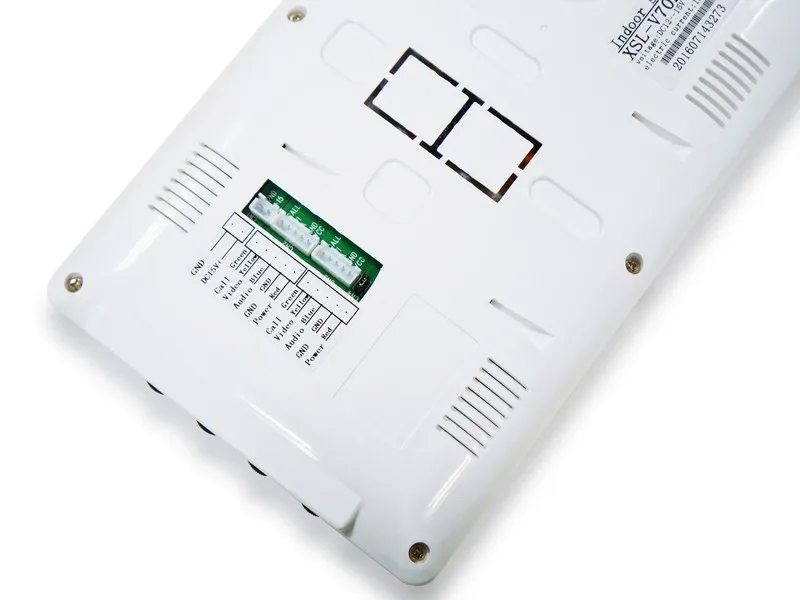

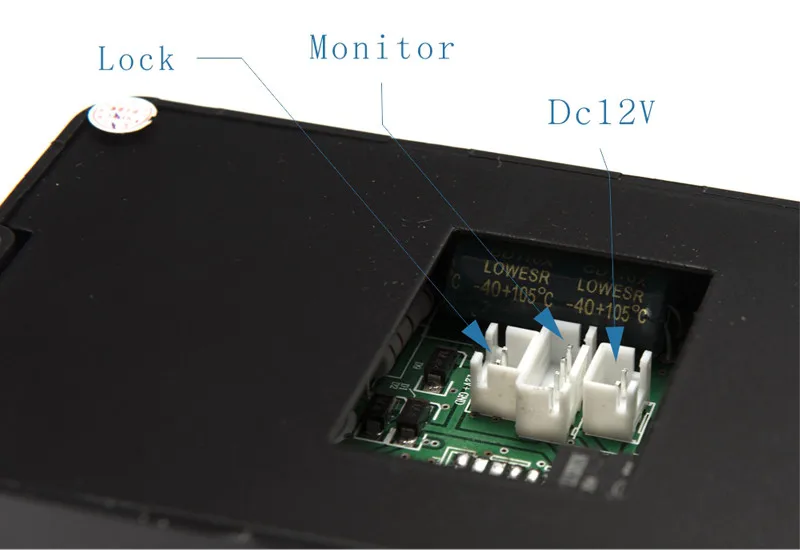

Wiring Diagram



aeProduct.getSubject()

We recommend you a 12V 3A power supply controller if your lock is strike lock, em lock, drop bolt lock.

12V 3A power supply for electric lock

aeProduct.getSubject()

Specification

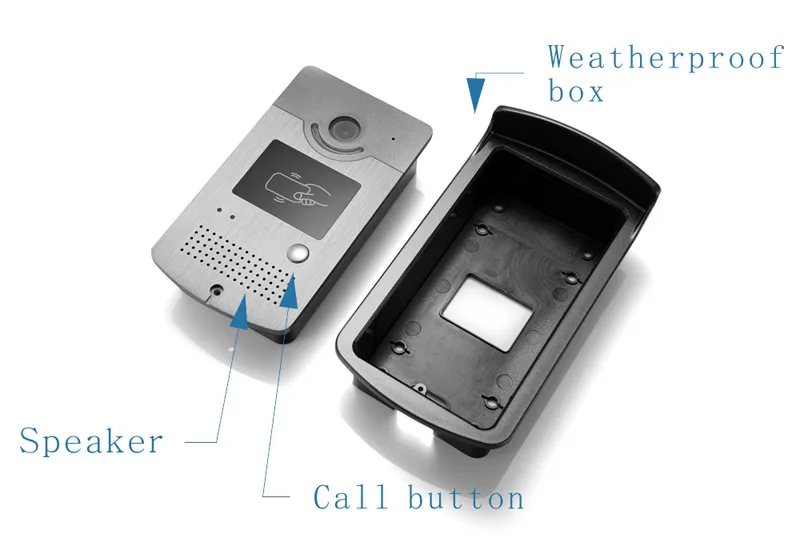

Outdoor Camera
Camera Resolution
700TVL
Night Vision Distance More than 2 meters
Working Temperature -35 degrees ~ +55 degrees
Intensity of Illumination 0.01 lux
Lens 2.3mm

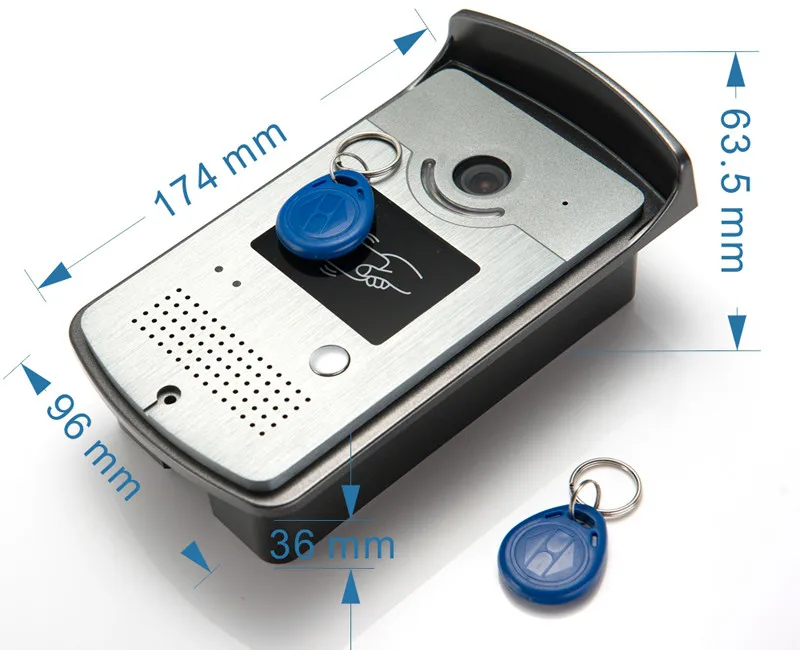

Dimension 174mm(L) x 96mm(W) x 36mm(H)
Installation Surface mounted / Buried wall mounted
Material Metal case
Net Weight 650g
Model ID
Indoor Monitor
Screen 7" LCD Digital 16:9 Display
Effective Pixels 800 x 480
Delay Calling Time 120s ± 10%
Delay monitoring time 40s ± 10%
Adapter Input AC100 - 240V 50-60HZ
Adapter Output DC15V
Unit Consumption Less than 6W, standby less than 0.5W
Working Temperature -35 degrees ~ 55degrees
Installation Wall mounted

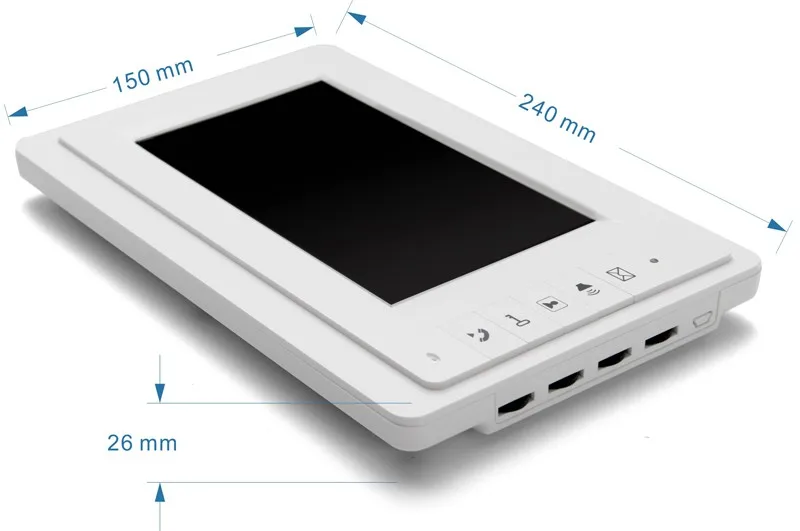

Dimension 240mm(L) x 150mm(W) x 23mm(H)
Weight 500g
Model V70F



Package

NOTE: We have the user manual in English , French, Spanish and Russian language.

We send the user manual in English/Russian language in default, please leave us message if you want the user manual in other language.aeProduct.getSubject()
