Report item
Item specifics
  • Lens (mm): 3.6mm
  • Sensor: CMOS
  • Brand Name: BESAFE
  • Network Interface: None
  • Model Number: BS-IRDNHTCF22
  • Connectivity: Closed System/CCTV Wired
  • Minimum Illumination(Lux): 0.001Lux / F1.2
  • Dimensions (L x W x D)(mm): 11*11*9cm
  • High Definition: 1080P(Full-HD)
  • Special Features: Vandal-proof
  • Type: TVI Camera
  • Technology: Infrared
  • Style: Dome Camera
  • Supported Operating Systems: No
  • is_customized: Yes
  • Video Compression Format: H.264
  • IR Distance(m): 20 Meters
  • Power Supply(V): DC12V (Not included)
  • OSD Language: English, Spanish, Russian, Italian...
  • Warranty: One year
  • Ships From: China
Product Description
This is 1080P AHD, CVI, TVI1.0 CVBS 4in1 camera, camera has one BNC connector but can have four kind of outputs.
AHD: Press OSD to UP
CVI: Press OSD to DOWN
TVI1.0: Press OSD to RIGHT
OSD-4 IN 1
Why we call it 4 in 1 camera?
It can work with
960H DVR(Analog DVR)
CVBS is just for installation and picture quality not as good as other three 1080P outputs.
If you will buy this camera only for CVBS(960H) output, please DO NOT order it, because we sell it as 1080P HD analog camera.
Camera is with F22   + FH8536E solution.
Also camera is with    IR-CUT      WDR      DNR      UTC      OSD    functions.
Our camera with good quality     IR-CUT    :

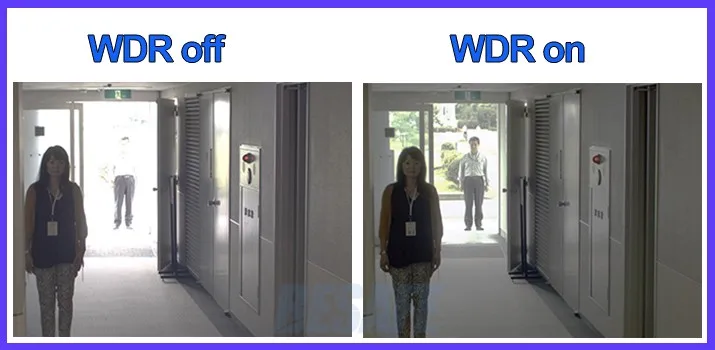

WDR     (Wide Dynamic Range)

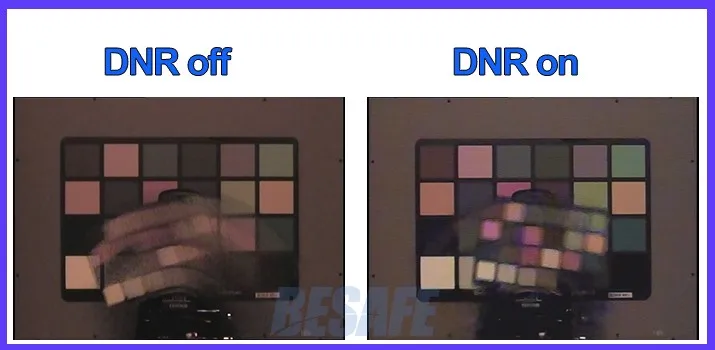

DNR    (Digital Noise Reduction)
UTC=Up The Coax
OSD menu can be controlled by DVR(Need DVR also supports UTC function)
OSD (2)
OSD Language: Chinese, English, Spanish, Russian, Italian
HTC 1080p+HTC960E OSD menu
Most important is----Its Price is better than 1080P IP camera.

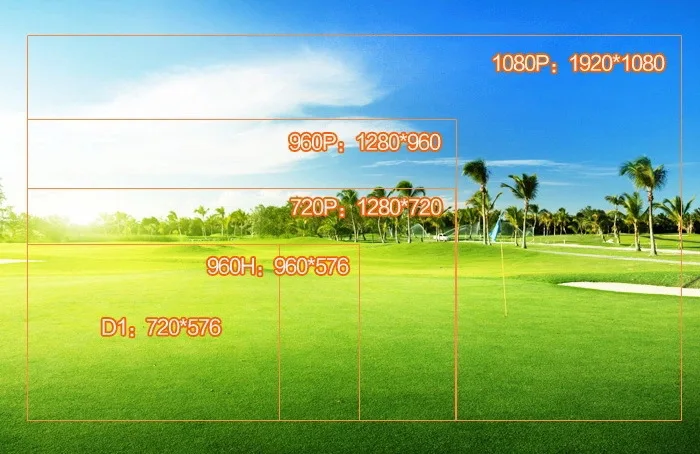

Same 1080P(1920*1080) resolution.
Price is lower!
Besides, this is REAL time and without any DELAY.
In addition, Plug and play!
Easy installation as analog camera, we do not need network setting as IP camera.
Coaxial transmission, super long range, more than 500 meters by 75-3
Why not choose it?:)
We have below 1080P AHD DVRs to work with this camera:
Model name BS-IRDNHTCF22
Image Sensor 1/2.7" 2.0MP CMOS Sensor/1080P
Solution F22 + FH8536E
Resolution 1920(H) x 1080(V)
Description 1080P AHD / CVI / TVI camera
Scanning system Progressive
Min. Illumination 0.01Lux / F1.2
S/N Ratio More than 58dB
Special function DNR
WDR (Wide Dynamic Range)
White Balance Auto
Transmission distance cable 75-3, >500M
IR 24 pcs LED (or New IR: 14miu *18pcs)  20Meter range
Day/Night IR-CUT
Lens Board Lens 3.6mm/F2.0
Video Output  AHD, CVI TVI,CVBS (4 in 1)
Auto Gain Control Auto
White Balance Auto White Balance
Material of housing Metal (Vandalproof)
Power Supply DC12V (Power supply is NOT included)
Temperature -20 - +55 degree
Humidity 0%-90%



Camera pictures:


Metal housing, Vandalproof

24pcs LED(or New IR 12miu*18pcs), 20Meters IR range


LIRDN(1)Metal housing







Now color of standard ring is BLACK!


LIRDN(5 )Black ring



Orange ring optional


LIRDN(4 )orange ring






LIRDN dimension




Please check below pictures for 1080P AHD/CVI/TVI output of this camera, then you know how good of this camera!


1. AHD:







2. CVI

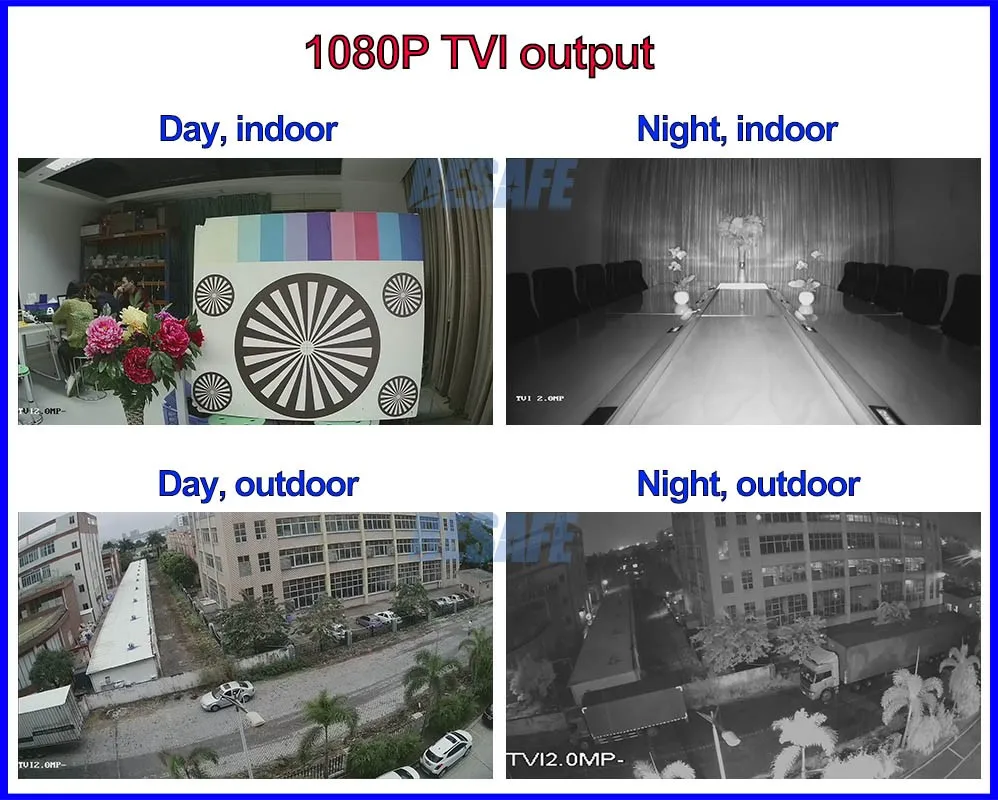

3. TVI





The above pictures not clear for you? Please check below real shooting photos   from AHD output of camera.

We need to reduce 1920*1080 resolution to 1000*562, if you need real shooting, feel free to contact us.

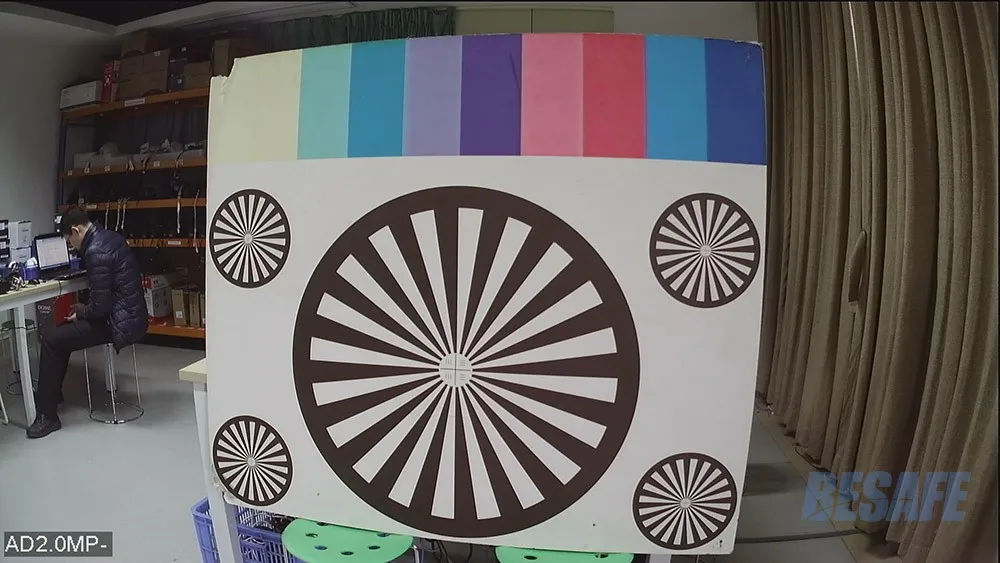

Indoor Day

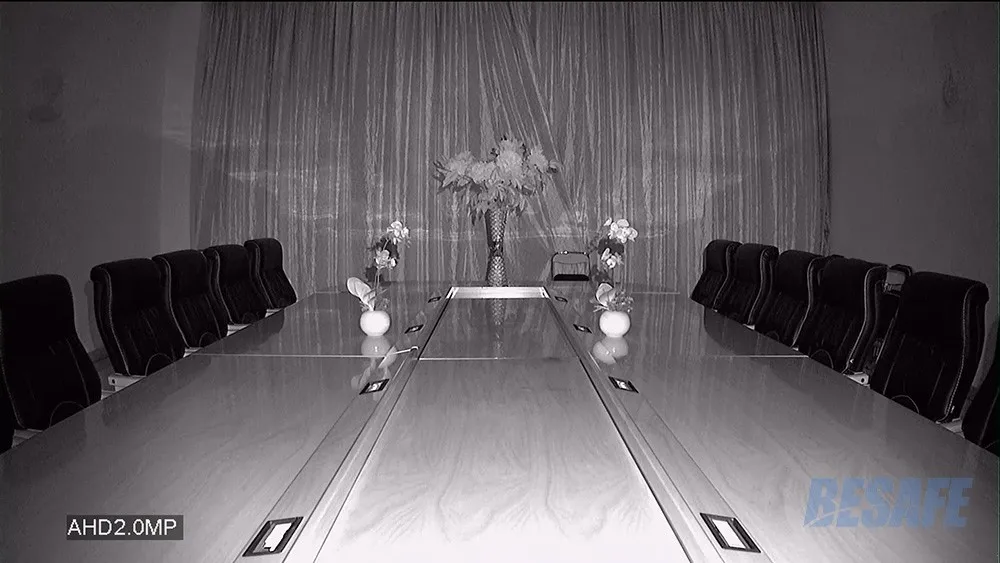

Indoor Night





Outdoor Day







Outdoor Night







Where is our camera produced?

We are factory!


production steps up

production steps down





Package contents:
1 * camera
1 * manual
1 * screws



packing information




1.We will send the goods within 3-5 working days after your payment is verify by Aliexpress.
2.Our free shipping only included China post air mail ,and the weight should be within 2KG. Please notice the China post air mail are slowly.
3.If you want to send by EMS.DHL and UPS, you should pay for the shipping cost.
4.When we send the goods , we will responsible for the problem in China Customs ,and the buyer should responsible for the problem in buyer’s country Customs.
5.You will trace the goods online after sending the goods 1-2 working days.
6.Please check your goods with shipping company face to face when you receive the goods.
7.If you find the camera is lost or damaged on the way. Please let the shipping company give you the prove. Then we will help you let the shipping company compensate you.


1. All merchandise we sell are in good quality and under strict examination before they are shipped. We will try our best to avoid any quality problem.
2. We promise warranty for quality in one year and we will repair it free of charge. The returning shipping should be paid by customer.
3. Your satisfaction of our products is guarantee. If you are not satisfied with the product, you may return the goods for exchange but please communicate with us before return. The shipping and handling charge is not refundable and customer should be responsible for all the charges of returning and reshipping.
4. All return items must be in good condition. They must be under resalable condition. Men-made defects are not guaranteed, such as broken, scratched and so on.


Feedback and Rating
We will work with you to until you are satisfied. we sincerely hope that you can leave us a positive
If, for any reason you are not satisfied with your purchaseplease contact us through "My Messages" or "Ask Seller Questions" before leaving neutral or negative feedback.PLEASE DO NOT leaves us 1, 2, 3 -star Detailed Seller Ratings because they are equal to negative feedback.




Packaging Details
  • Unit Type: piece
  • Package Weight: 0.43kg (0.95lb.)
  • Package Size: 11cm x 11cm x 9cm (4.33in x 4.33in x 3.54in)
