Item specifics
  • is_customized: Yes
  • Technology: Infrared
  • Brand Name: PU`Aimetis
  • IR Distance(m): 10M
  • Power Supply(V): 12V
  • Power Consumption(W): 120MA
  • Sensor: CMOS
  • Alarm Action: FTP Photo
  • Dimensions (L x W x D)(mm): 38*38
  • Viewing Angle (Degree): 170
  • Supported Mobile Systems: iPhone OS,Android
  • Connectivity: IP/Network Wired
  • Sensor Brand: SONY
  • Supported Operating Systems: Windows XP,Windows 7,Windows 8
  • Type: IP Camera
  • Video Compression Format: H.264
  • Lens (mm): 1.7mm
  • Minimum Illumination(Lux): 170
  • High Definition: 1080P(Full-HD)
  • Network Interface: RJ-45 10/100Mb Ethernet Slot
  • Style: Dome Camera
  • Model Number: PAS-01
  • Special Features: Wireless Camera
  • Audio Output: IP
Product Description

IP Camera Module IMX322 2.0MP 1080P 360 Degree Wide Angle Fisheye Panoramic Camera Infrared Surveillance Camera 1.7mm HD lens



(If you install on the wall, it will reach 85/75/50 range. If you install on the ceiling, it will reach 180 Degree / 360 Degree Panoramic)



Our company has been persisting in the tenet of credibility based, customers supreme, and quality guaranteed, to provide the best services to you through our utmost efforts!
We promise: the same to you the quality our price is optimal, same price our quality is the most guarantee!
Factory direct sales of goods are definitely value for money!

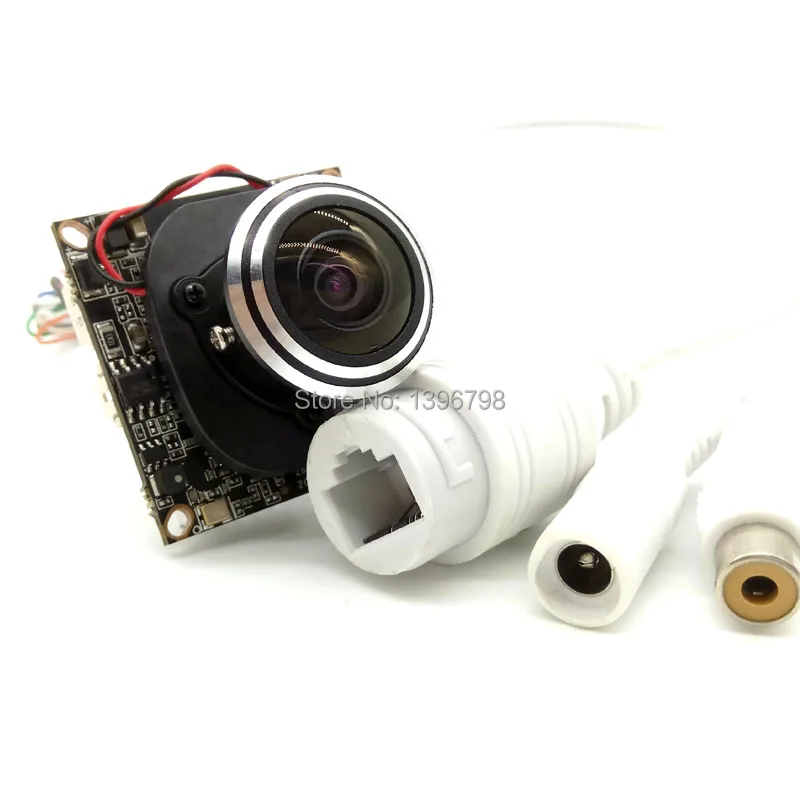

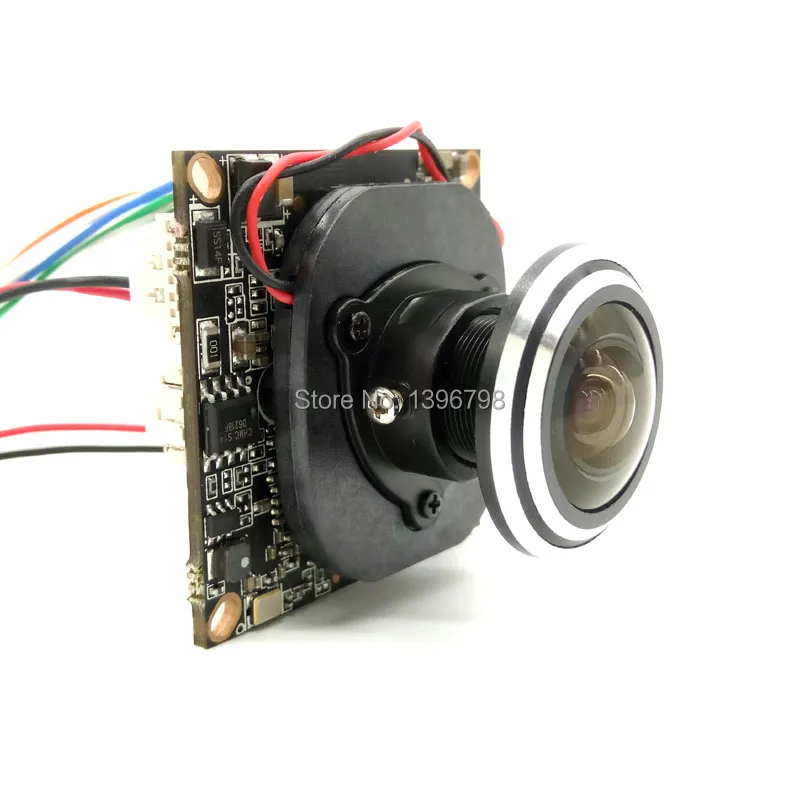

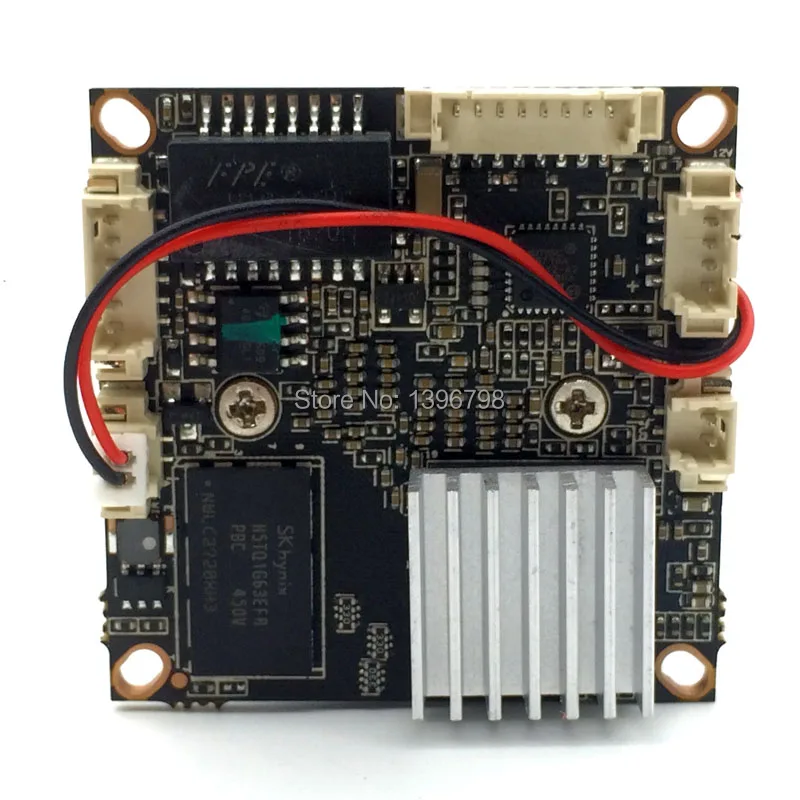

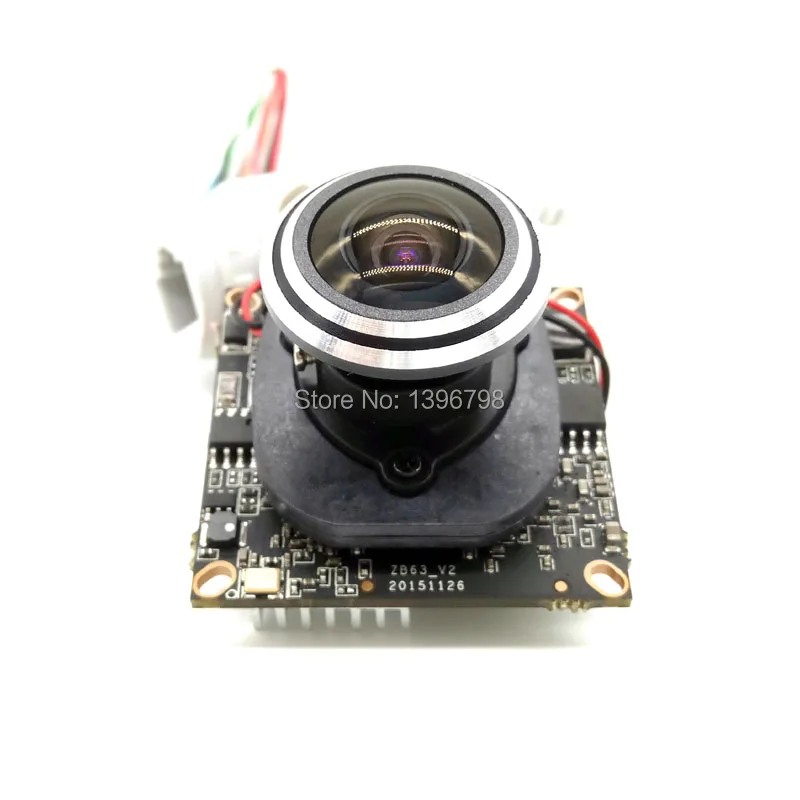

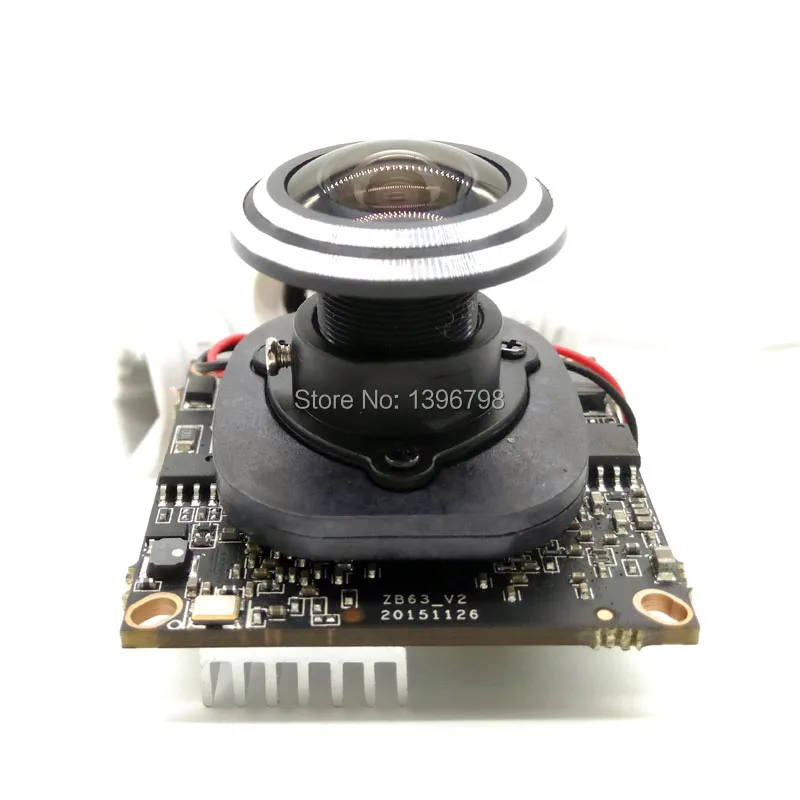

1080P IP Camera Module 2.0MP ,HD 2.0MP CCTV Camera  Main Board

 -- 1/2.8 CMOS  Hi3516D + SONY IMX322
 -- 2.0MegaPixel
 -- Single Board 100% Brand New and High Quality
 --Size: 38*38mm



Product Description
* High Definition 1080P output, resolution 1280x 960.
* ICR (IR-Cut-OFF) filter required for better picture color & quality.
* Day / Night mode support external triggering by CDS (or 3.5V ~ 5V voltage signal).

Parameter:
The main chip: Hi3516D + SONY  IMX322
Video resolution: 1080P 1920 × 1080
Effective pixels: 2.0MP
Video compression standards: H.264
Video frame rate: up to 25fps
Video bit rate: 128kbps ~ 6Mbps
SNR: 42dB
Minimum illumination: 0Lux (IR ON)
Network: 1 * RJ45,10 / 100M, Support RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP / SMTP
ONVIF: Support
POE: Support
Compression: G.711
PRIVACY: Supports four block area Block
Exposure control: Automatic
White Balance: Auto
Day and night function: IR-CUT double filter switching, support for color to black
Video adjustment: support contrast, brightness, saturation, sharpness and picture mirror flips adjustment
Remote operations: system settings, stream management, account management,
WEB Browser: Support WEB remote config (IE, Safari, Google Chrome, Firefox etc.)
Smart Phone: mobile remote Monitoring (iPhone, Android,)
network management
Motion Detection: Support
Detection alarm: alarm messages, alarm clients
Peripheral expansion interface: Audio input
Maximum Distance No. of Ways: 12
Mobile operating systems: Android, iPhone
Supported protocols: TCP / IP
Ethernet: 10 / 100M Ethernet, RJ45 port
Stream: Tri-streaming
Network protocols: standard HTTP, TCP / IP, ICMP.RTSP, RTP, UDP, RTCP, SMTP, DHCP, DNS
ONVIF: Support
Audio: Input and output
Temperature: -20 degrees Celsius to +55 degrees Celsius
Humidity: 10% to 90%
Wire: Waterproof
Supplied Voltage: DC12V / Option PoE (802.3af / 820.3at)
Dimensions: 38 * 38mm
Lens: 3MP 1.7mm
Angle: 170degrees


-0-6-2-1-3-4-5-7-3-6-1-2-3-4-5

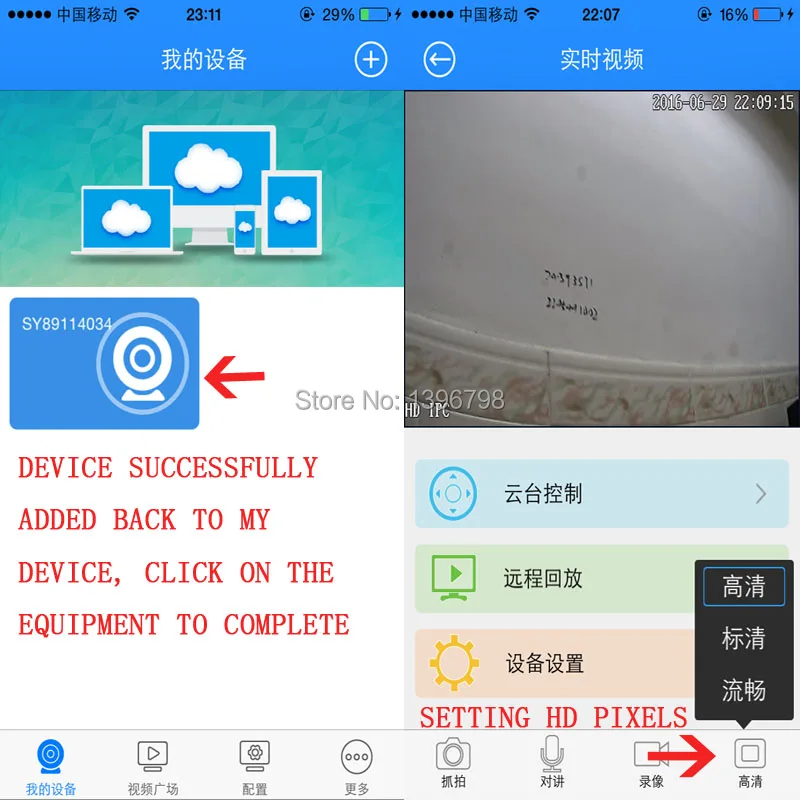

instructions for use:
1, if there have an VR, IT ISP2P, installation diagram:
-1

HTB1mX6nHXXXXXXaXpXXq6xXFXXX6-1

Warranty:

             1. All merchandise we sell are in good quality and under strict examination before they are shipped. We will try our best to avoid any quality problem.

             2. We promise warranty for quality in one year and we will repair it free of charge. The returning shipping should be paid by customer.

             3. Your satisfaction of our products is guarantee. If you are not satisfied with the product, you may return the goods for exchange but please communicate with us before return. The shipping and handling charge is not refundable and customer should be responsible for all the charges of returning and reshipping.

             4. All return items must be in good condition. They must be under resalable condition.


Feedback:
The clients satisfaction and positive feedback is very important to us. Please kindly leave positive feedback and 5 stars if you are satisfied with the goods and services.
If you have any problems with our items or services, please feel free to contact us firstly before you send negative feedback. We will do our best to solve any problems and provide you with the best customer experiences.



                 Thank  you  for your shopping

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.16kg (0.35lb.)
  • Package Size: 10cm x 8cm x 9cm (3.94in x 3.15in x 3.54in)
