Item specifics
  • Brand Name: PU`Aimetis
  • Alarm Action: Local Alarm
  • Technology: Infrared
  • Supported Operating Systems: No,Windows Vista
  • Sensor: CMOS
  • Video Compression Format: MJPEG
  • Wall Bracket: Side
  • is_customized: Yes
  • Dimensions (L x W x D)(mm): 38*38/32*32
  • Color: Black
  • High Definition: 720P(HD)
  • IR Distance(m): 5m
  • Minimum Illumination(Lux): 120
  • Supported Mobile Systems: Symbian
  • Connectivity: Closed System/CCTV Wired
  • Power Consumption(W): 60mA
  • Model Number: AHD-6
  • Audio Output: 1CH BNC
  • Power Supply(V): 12V
  • Style: Mini Camera
  • Network Interface: None
  • Installation: Embedded
  • Sensor Brand: SONY
  • Lens (mm): 2.8mm
  • Type: AHD Camera
  • Special Features: Non-waterproof anti-breakage
  • Imaging Device: 1/4 : Pixels: 1280 (H) * 720 (V)
  • Horizontal resolution: 720P / 1MP: Operating Current: DC12V 60mA
  • Lens Diameter: 14mm: System format: PAL / NTSC
  • Viewing Angle (Degree): 120
Product Description

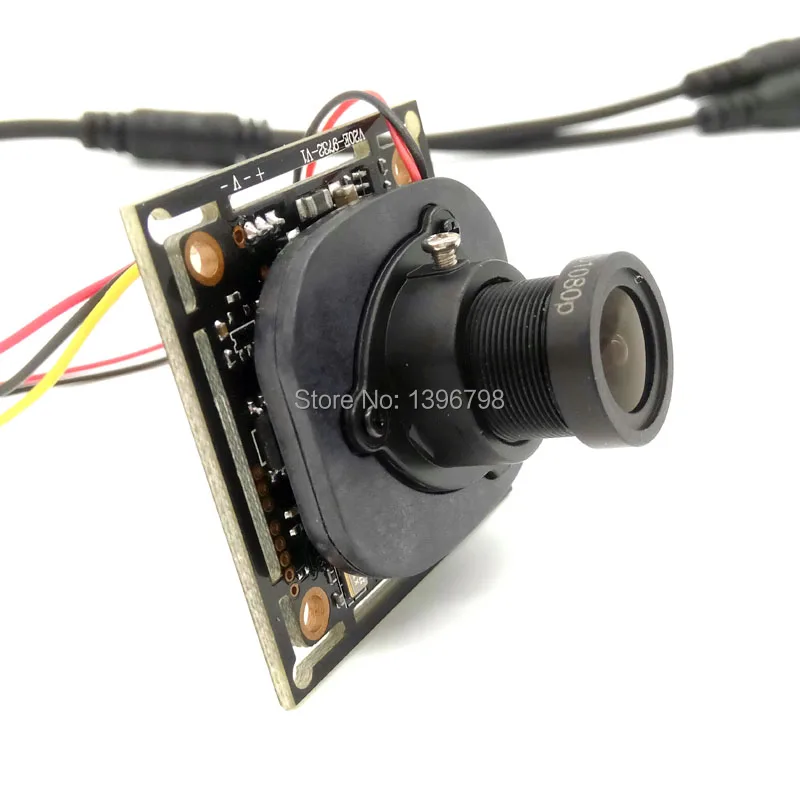

720P AHD 4in1 camera module 1.0MP 1000TVL night vision wide angle 120 degrees 1080P 2.8mm lens surveillance cameras



Our company has been persisting in the tenet of credibility based, customers supreme, and quality guaranteed, to provide the best services to you through our utmost efforts!
We promise: the same to you the quality our price is optimal, same price our quality is the most guarantee!
Factory direct sales of goods are definitely value for money!

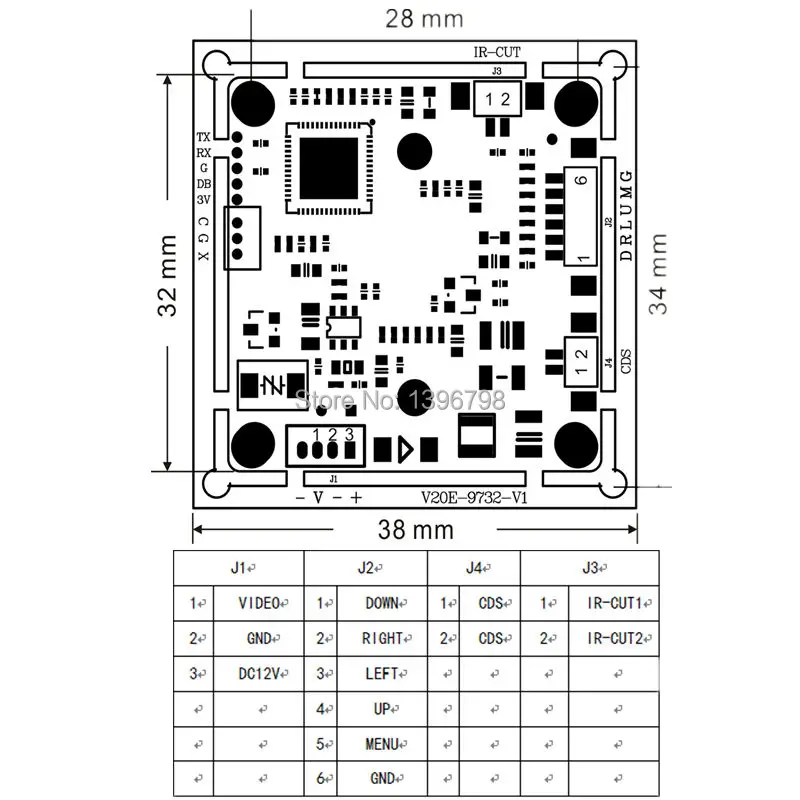

720P AHD Camera Module AHD-1MP, HD CCTV Camera Main Board

 - 1 / 4 CMOS V20E+OV9732(FH8532E)
 - 1.0MegaPixel
 - Single Board 100% Brand New and High Quality
 --Size: 38 * 38mm / 32 * 32mm

* 1.0 megapixel High Definition CMOS image sensor ,, Horizontal resolution reached up to 1000TVL (B / W 1200TVL)
* Micron Aptina 1/4 CMOS OV9732 & Nextchip DSP V20E(FH8532E).
* Support OSD menu control.
* IRC (IR-Cut-OFF) filter required for better picture color & quality.
* Day and night features: support automatic switching IR-CUT
* The menu key to switch AHD and CVBS, to facilitate customers with different back-end (with AHD 720H of the DVR or DVR).
Video format: PAL / NTSC selectable


Features:
Use 1 million progressive scan CMOS, capture motion-free images
Support coaxial HD output, clear and exquisite images
Illumination, 0.1Lux @ (F1.2, AGC ON), 0LUX with IR
Support IR-CUT switch, CDS external control, day and night surveillance
Support OSD menu control for user-defined settings
Support for digital WDR
Adaptive digital noise reduction, 2D-DNR
Support functions UTC

Technical Parameters:
Model: V20E-9732-V1
Parameters: 1000004 HD surveillance cameras in 1 coaxial module

Module Parameters
Sensor Type: 1/4 "OV9732 + V20E (FH8532E)
System format: PAL / NTSC
Effective pixels: 1280 (H) x720 (V)
Minimum illumination: 0.1Lux @ (F1.2, AGC ON), 0LUX with IR
Shutter: AUTO
Day and night modes: External Control (default) / Auto / color / B & W
Synchronization: Internal synchronization
Frame rate: 720P @ 25fps / 720P @ 30fps
Video Output: AHD / TVI / CVI / CVBS switchable

Menu Control
Came to light: brightness / exposing mode / gain
White Balance: ATW / manual white balance
Day & Night: IR / Internal Auto / color / B & W
Video settings: contrast / sharpness / saturation / DNR / video format / digital WDR
Language: Chinese / ESPANOL / Traditional Chinese / ITALIANO / ENGLISH
reset

General Specifications
Operating temperature: -20 degrees Celsius to 60 degrees Celsius
Humidity: relative humidity less than 90%
Power - Current: DC12V (± 20%) - 50MA
Size: 32 * 32/38 * 38 (mm)
Lens: 1080P 2.8mm Lens
Angle: 120 degrees

Menu Switch Mode: The factory default AHD signals:
Top: AHD: CVI Left: TVI Right: CVBS (press 5 seconds release the switch).

Standard switching:
PAL / NTSC switch directly inside the menu.

Please note:
This paragraph AHD HD chip will use special AHD an image recorder, video recorder no ordinary picture, but the display is not directly connected to a VCR image!
2.8-00_

2.8-52.8-62.8-32.8-42.8-22.8-1
HTB1mX6nHXXXXXXaXpXXq6xXFXXX6-1
