Item specifics
  • Sensor Size(Inch): 1/3
  • Communication Interface: Wired
  • Samrt Home Interface: No
  • Access Control: Inductive Card
  • Display Screen Size(inch): 7
  • Material: METAL ABS
  • Answering Mode: Hands-free
  • IP Camera Interface: No
  • Brand Name: JERUAN
  • Zone Input: None
  • Type: Intercom System
  • Camera Sensor type: CMOS
  • Technology: Analog
  • Viewing Angle (°): 92
  • Power: 15V DC
  • Doorbell: Yes
  • Model Number: S708-D6V-ID-lock
  • Kit Configuration: One to One video doorphone
  • Installation: Wall Mounting
  • Connection Method: Wired
  • Display Screen Type: Color
  • Waterproof: Yes
  • Resolution: 700TVline
  • Camera: color
  • Power: 100V~240V
Product Description

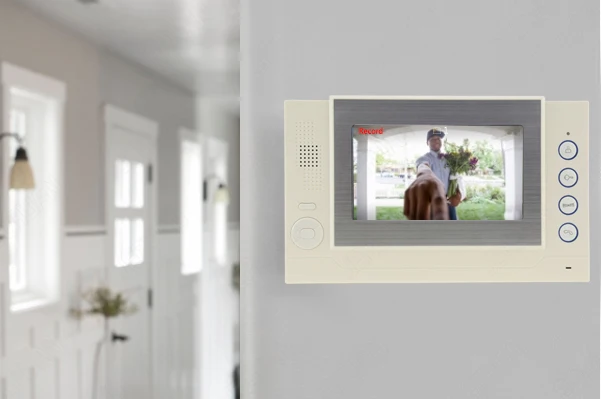

7 inch video door phone access control system monitor video recording photo taking +1RFID Camera In Stock



708-D643

7`` color TFT LCD screen ,low power consumption without radiation ,real wide display wish high resolution.

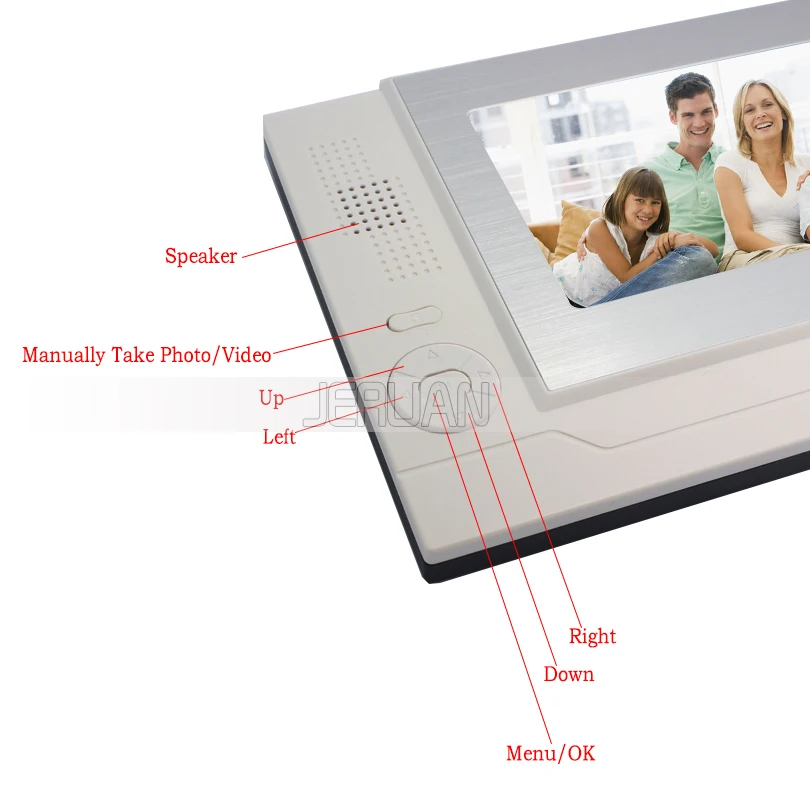

Indoor Unit Specification:

  • Screen size:7”(16:9 display)
  • Resolution: digital:800(RGB)×480Pixel
  • Visual angle: up 50 degree, down 70 degree, left or right 70 degree
  • Brightness: 200cd/centiare
  • Ringtone: chorded polyphonic ringtone
  • Sensitivity: 56db
  • Signal system: PAL/NTSC (optional)
  • Input voltage: AC 100V-240V ~ 50Hz/60Hz
  • Overall Power Consumption:≤6W(400mA)
  • Stand-by Power Consumption:<1.1W
  • Power Adapter Specifications: DC 15V 1000-1500mA
  • Talk Time Delay: 120S±10%
  • Monitor Time Delay: 40S±10%
  • Effective distance:200M(4×0.75M centiare)
  • Operating Temperature:-20~+60 degree
  • Relative humidity:10%~90%(KH)
  • Indoor unit installation method: wall-mounted type

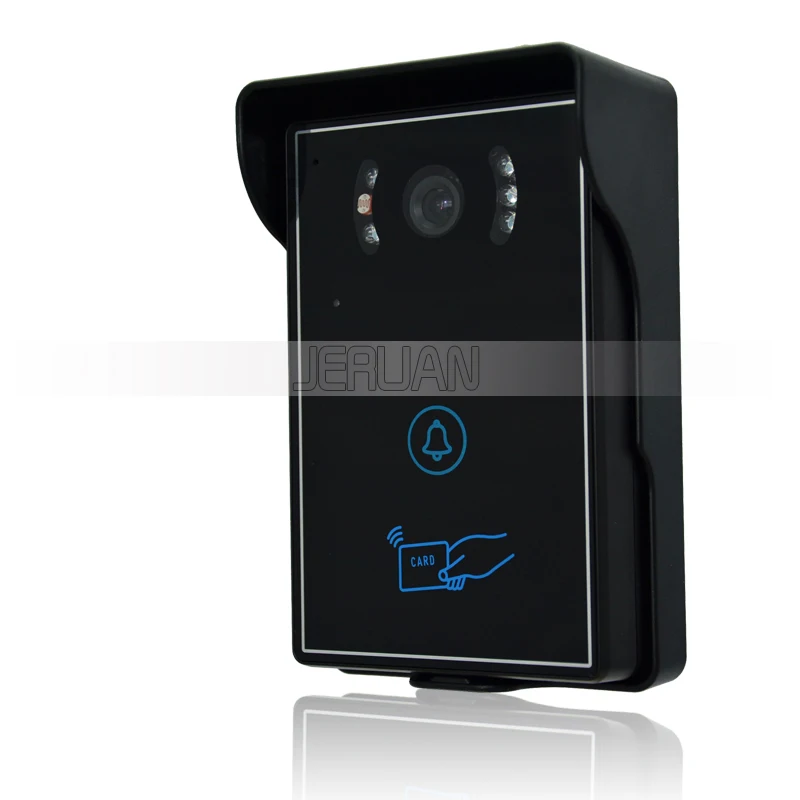

Outdoor Unit Specification:

  • Infrared lamp lighting distance: approximate 4 meters
  • Gain control: auto
  • Resolution: 700  lines
  • Talk time delay: 120S±10%
  • Image transmission distance: approximate 200 meters
  • Visual angle:  92
  • KW: <2W
  • Power: DC 15V (provided by the extension phone directly)
  • Camera : High definition and colorful CMOS/CCD(optional)
  • Outdoor infrared night vision function: 10 LUX infrared
  • Operating Temperature:-20~+60 degree
  • Outdoor unit installation method: embedded or wall-mounted type

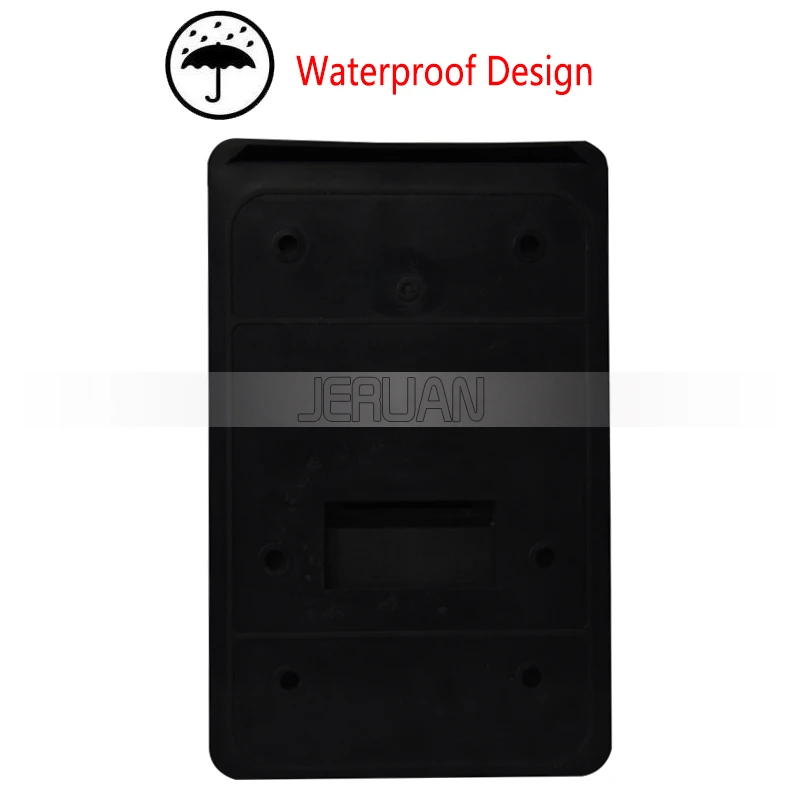

  • Waterproof level :IP55
  • Touch panle
  • Tamper alarm

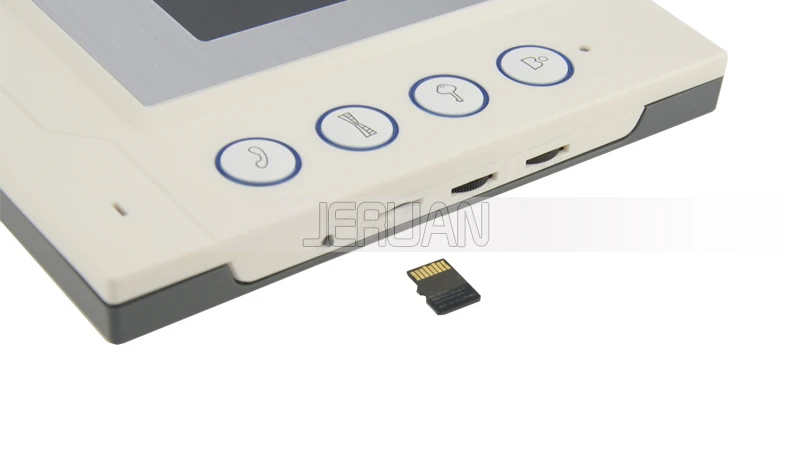

Photo/Recording:
The unit is with build in 2M memory(can store 50pcs photos),also you can insert external memory card into the system for photo/ recording ,It will photo automatically and make a 15S video once the visitor pressing the outdoor camera call bottom .
if the memory is full , The new file will overwrite the earlier file automatically(Note: the item should be installed with TF card in advance).
708 708-7 708-1 708-2 708-3 708-4 708-5 708-6
out D6-1 (1) D6-1 (2) D6-1 (3) D6-1 (4) D6-1 (5) D6-1 (6) D6-1 (7)

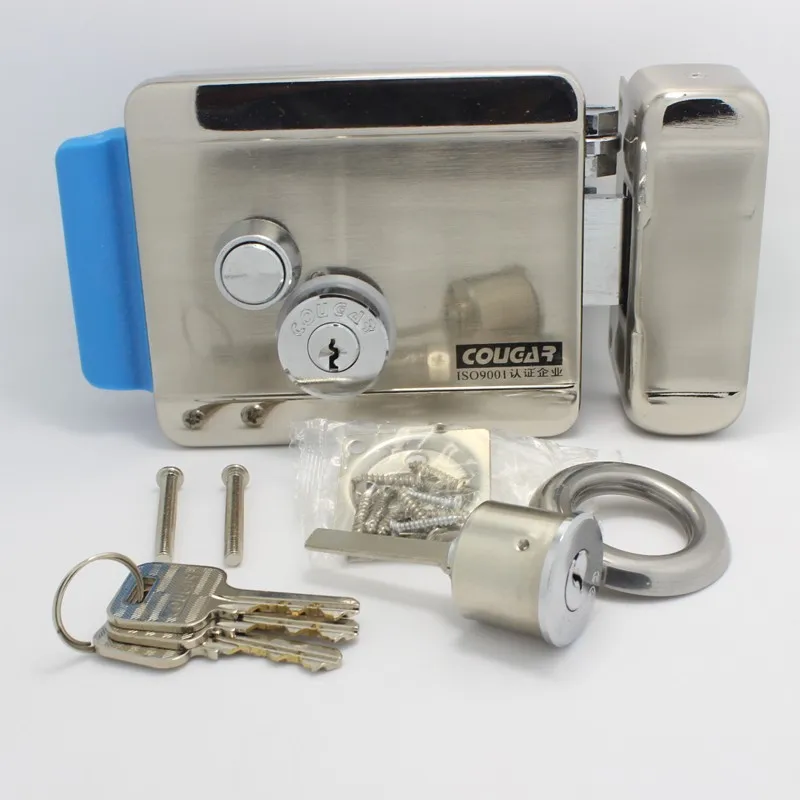

Electric Control Lock:

This is a 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption. This Door Locks fit for different kinds of doors. When bolt extends out, the door can be locked normally.

  • NO Mode - (Locked while power is off);
  • Material: Stainless Steel;
  • Authority Certification: CE & MA Approved
  • Application: wood/iron doors;
  • Working Voltage: 12VDC
  • Working Current: 0.2-0.45A
  • Weight: 1500g;
  • Dimension (Face Plate): 120mm x 105mm x 35mm
  • Center distance: 60mm
  • Door distance: 35-55mm
HTB14XVdLFXXXXcoXXXXq6xXFXXX3
Power supply:



This is a 110V-240V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.



  • It controls electric lock directly.

  • Can reduce the load of access controller, save wiring to reduce the hidden trouble

  • Based delay control circuit, lock time can be in 0-15 seconds

  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

  • Operative device: E/M Lock, Access Controller, Exit Push Butto




Remote Control:



If you purchase this video intercom system now, we will supply the following Remote control to you for free, when you want to go out, you just need to click this Remote control, then you can go out:

NOTE:The remote control without batteries

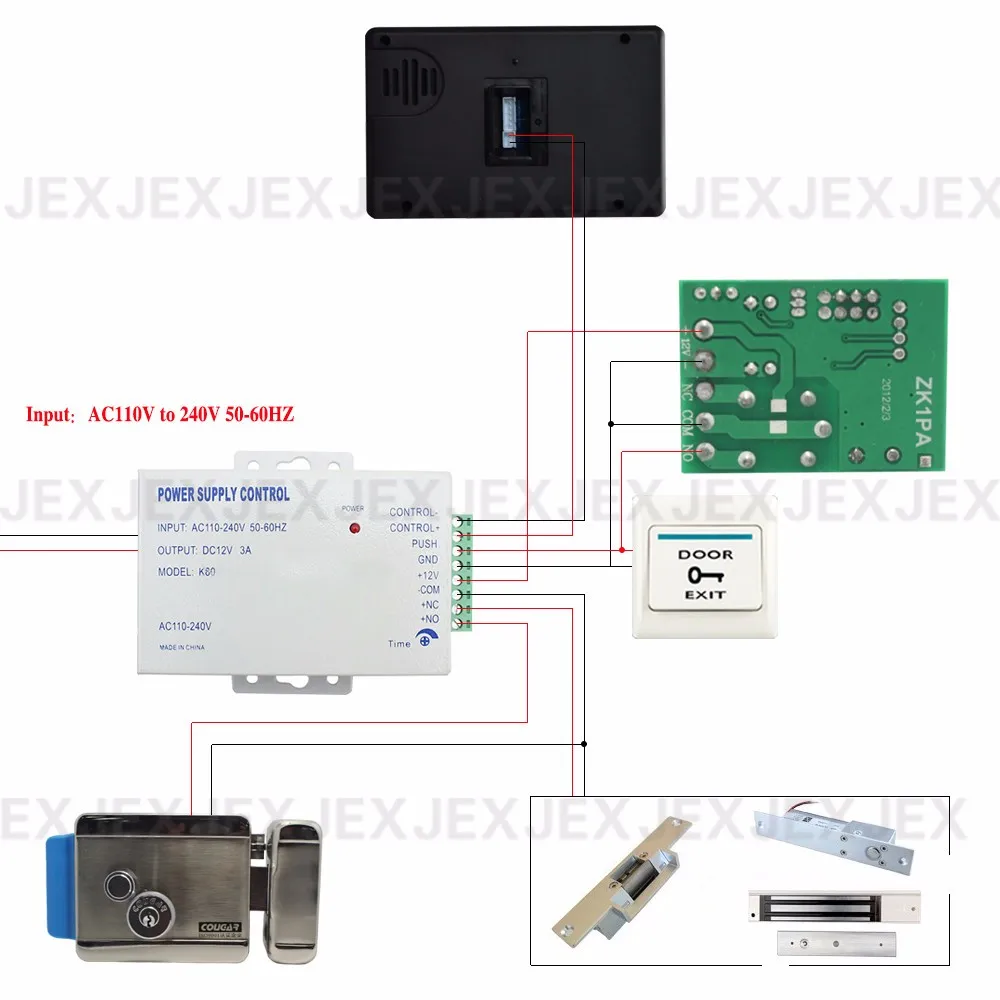

Wiring:



D6-1
What\'s in the box:

1 x Outdoor camera

1 x Indoor monitor

1 x 12V 3A power supply

1 x Remote control (NOTE:The remote control without batteries)

1 x power adapter (We will send AU/EU/US/UK type according to your address)

5 x RFID keyfobs (Please leave us message if you need more keyfobs)

1 x testing cable

1 x exit switch

1 x connetcors and screws for installation

1 x user manual

1 x Electric control door lock

1 x 8GB TF CARD
